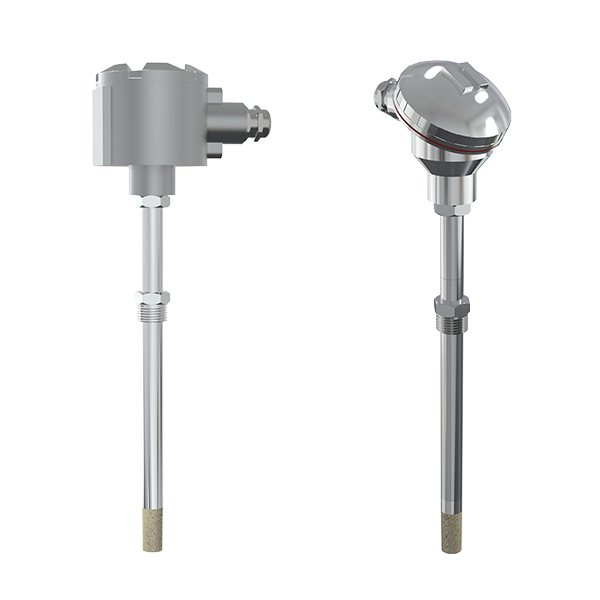

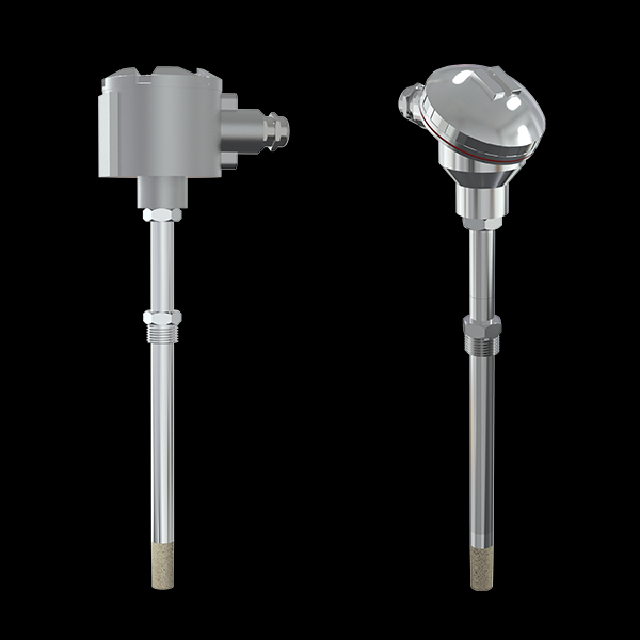

Product Introduction
Adopts imported temperature measurement unit, with high measurement accuracy and strong anti-interference ability.
Multiple analog signal outputs available: 4~20mA, 0~5V, 0~10V.
On-site power supply adopts 10~30V DC wide voltage power supply, which can adapt to various DC power sources on site.
The product adopts 1/2-inch pipe thread installation, which is convenient to install. Its protection rating is IP65 and it can be used in harsh outdoor on-site environments.
| DC Power Supply (Default) | DC 10-30V | |
| Average Power Consumption | 0.35W | |
| Working Environment | -40℃~+60℃, 0%RH~95%RH (non-condensing) | |
| Temperature and Humidity Measurement Range | -40℃~+120℃, default -40℃~+80℃ 0%RH~100%RH |
|
| Temperature Display Resolution | 0.1℃ | |
| Humidity Display Resolution | 0.1RH% | |
| Measurement accuracy | Humidity | ±3%RH（60%RH，25℃） |
| Temperature | ±0.5℃（25℃） | |
| Output signal | 4-20mA、0-5V、0-10V |
|
| Long-term stability | Humidity | ≤1%RH/y |
| Temperature | ≤0.1℃/y | |
| 安装方式 | G1/2 thread installation | |
| Waterproof rating | IP65 | |
| DC Power Supply (Default) | DC 10-30V | |
Main Application Areas
- HVAC Systems — Monitor temperature and humidity in air ducts for efficient climate control and energy savings.
- Industrial Process Control — Ensure precise environmental conditions in manufacturing processes requiring stable temperature and humidity.
- Cleanrooms — Maintain strict temperature and humidity levels to prevent contamination in pharmaceutical and semiconductor cleanrooms.
- Greenhouses — Optimize growing conditions by monitoring temperature and humidity in agricultural duct systems.
- Warehouses — Protect stored goods from temperature and humidity fluctuations in large storage facilities.
