Position Sensors | Sensors

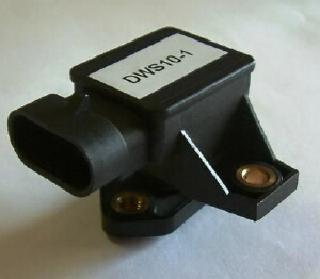

UK SST Hall Effect Rotary Position Sensor - DWS10-1, DWS10-3

The RPN series rotary position sensor uses a magnetic bias Hall effect integrated circuit (IC) to accurately detect the rotary motion of the actuator within the set working range. This IC, along with signal processing circuitry, protection circuitry, and two permanent magnets, is sealed in a robust package.

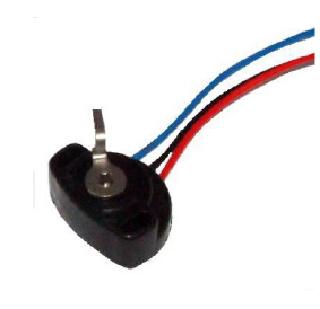

UK SST RPS Series Rotary Position Sensor - RPS-004

The rotary position sensor RPS-004 features high performance, low cost, and long endurance, and protects the sensor from engine compartment environments. The drive rod, flying leads, and connector plug can be configured according to specific customer requirements.

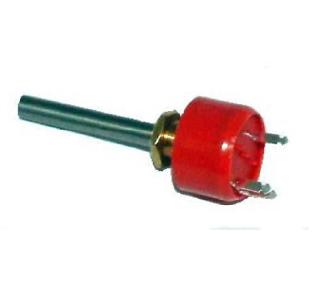

UK SST RPC Series Rotary Position Control Sensor - RPC Series

The RPC series rotary position control sensors are highly reliable, rugged, easy to use, long-lasting, easy to install, with reliable technology and easy customization.

UK SST LPS Series Linear Position Sensor - LPS Series

The LPS series linear position sensor features a fiberglass nylon sensor body, 10mm electrical stroke, and spring-loaded piston, with a mechanical endurance of 3,000,000 cycles.

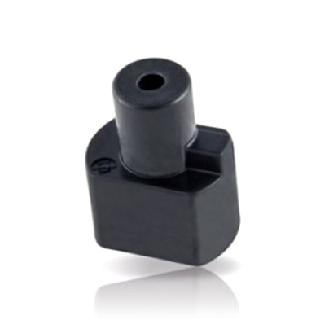

Germany ZF Magnetic Carrier for AN8 and AN9 Sensors - AS500106

Magnetic carrier for ZF AN8 and AN9 sensors, PPS housing, SmCo28 magnet.

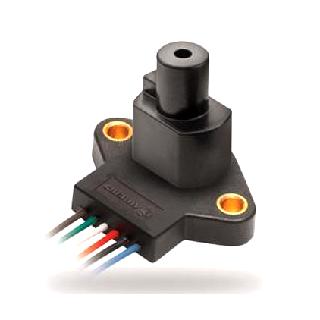

Germany ZF Angular Position Sensor - AN8

The angular position sensor AN8 is a non-contact, inherently linear contactless angular position sensor. It utilizes Hall effect technology and the magnetic field generated by a magnet. The voltage output changes linearly (proportional to the input voltage) corresponding to the angular displacement of the input shaft.

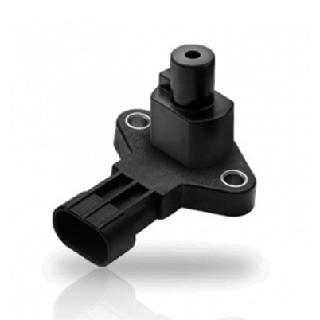

Germany ZF Angular Position Sensor - AN9

The angular position sensor AN9 is a non-contact, inherently linear contactless angular position sensor with two independent outputs. It utilizes Hall effect technology and the magnetic field generated by a magnet. The voltage output changes linearly (proportional to the input voltage) corresponding to the angular displacement of the input shaft.

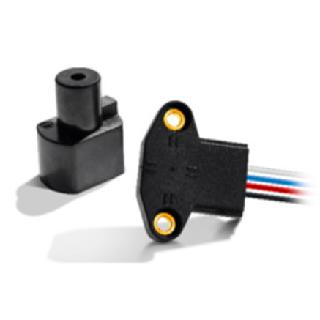

Germany ZF Position Sensor - ANG Series

The ANG series position sensors are non-contact, inherently linear position sensors with one or two separate (redundant) outputs. They utilize Hall effect technology and the magnetic field generated by a magnet. The voltage output changes linearly (proportional to the input voltage) corresponding to the angular displacement of the input shaft. The actuator magnet part number AS500106 is required for proper operation (must be ordered separately).

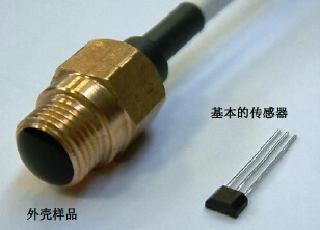

UK SST Copper-Plated Housing Hall Effect Digital Position Sensor - DS0062

The copper-plated housing position sensor has a thermally balanced integrated circuit over the entire operating temperature range. The negative compensation slope is optimized to match the negative temperature coefficient of low-cost magnets.

Germany ZF Angular Position Sensor - AN1

The Germany ZF angular position sensor AN1 is an integrated, inherently linear contact angular position sensor. The sensor uses the magnetic field generated by a permanent magnet and operates using Hall effect technology. It provides a linear voltage output (proportional to the input voltage) corresponding to the angular rotation of the input shaft.
