Air Quality Sensor | Sensor | Gas Sensor

PM2.5 Laser Sensor - YT01

PM2.5 Laser Sensor - YT01 is a general-purpose fine particulate matter concentration sensor used to obtain mass data of PM2.5 and PM10 per unit volume in the air, and output via digital interface. This sensor can be embedded in various instruments and environmental improvement devices related to fine particulate matter concentration, or used in other applications requiring PM2.5 concentration detection.

Japan SHARP PM2.5 Dust Sensor / Dust Sensor - GP2Y1010AU0F

GP2Y1010AU0F PM2.5 Dust Sensor / Dust Sensor is an infrared optical dust sensor, i.e., PM2.5 sensor, capable of measuring particles of 0.8um, can test pollen, cigarette smoke, etc., very suitable for air purifiers.

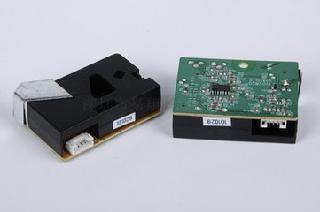

Korea syhitech Dust Sensor / Dust Sensor - DSM501

Dust Sensor / Dust Sensor / PM2.5 Sensor DSM501 can detect smoke from tobacco, pollen, household dust, etc., with a heated automatic air intake device and adjustable resistor to set the detection particle size. Based on the same principle as particle counters, it detects the number of particles per unit volume.

Japan figaro Laser Particle Sensor PM2.5 Sensor - TF-LP01

TF-LP01 Laser Particle Sensor is a compact module that detects airborne dust particles using light scattering principles. It features small size, high detection accuracy, good repeatability, consistency, real-time response with continuous sampling, strong anti-interference capability, ultra-quiet fan, and 100% factory testing and calibration.

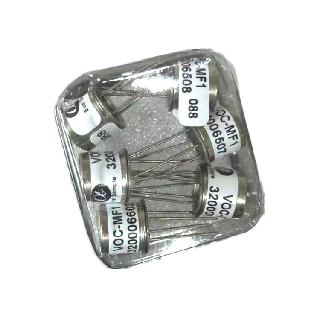

UK Alphasense P-type Semiconductor VOC Sensor - VOC-MF1, VOC-PF1, VOC-AF1

VOC gas sensors VOC-MF1, VOC-PF1, VOC-AF1 are TVOC sensors with large dynamic range, repeatable response, and low humidity influence. Considering the high cost of PID, these VOC sensors can be used to detect VOCs from 10 to 50 ppb.

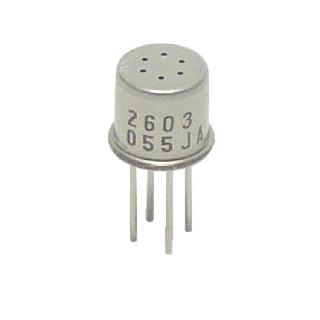

Japan FIGARO Air Quality Sensor (focusing on methyl mercaptan) - TGS2603-B00

Air Quality Sensor TGS2603 has high sensitivity to low concentrations of odors, such as hydrogen sulfide from amine series, waste, and spoiled fish.

Korea syhitech Particle Sensor Module PM2.5 Sensor - PDSM010

PM2.5 Sensor PDSM010 detects particles of approximately 1㎛, such as indoor dust, pollen, microorganisms, dust mites, and cigarette smoke, measuring the concentration of floating particles in spaces up to 30㎥.

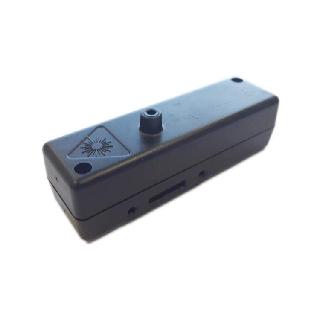

UK alphasense PM2.5 Sensor / Dust Sensor - OPC-R1

PM2.5 Sensor / Dust Sensor OPC-R1 features: reports PM1, PM2.5, and PM10, along with corresponding time series, communicates and upgrades firmware via SPI connector, provides PC software, removable fan outlet adapter, small size, low power consumption, and can be configured for specific applications.

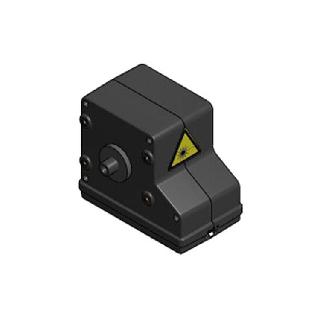

UK alphasense PM2.5 Sensor - OPC-N2

UK alphasense OPC-N2 is a lightweight PM2.5 sensor using laser detection, high accuracy, quickly provides particle size distribution; mainly used in outdoor environmental monitoring, roadside monitoring stations, industrial measurement, emission monitoring, and other fields.

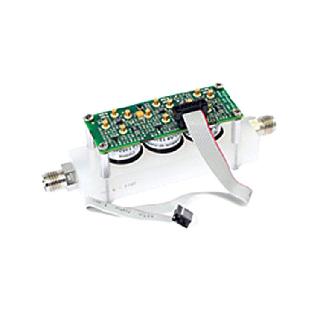

Analog Front End (AFE) A4 Series Air Quality Sensor - AFE

Based on product design, the A4 series air quality sensor requires an analog front end (AFE): since portable monitoring devices require compact size, we designed the circuit board with high component density, saving valuable space for your monitoring device. Now simply connect the AFE and A4 sensor to a multiplexed ADC to quickly record air quality data.
