Product Introduction
| 参数项目 |
技术规格 |
| Detection principle |
Catalytic combustion, electrochemical, semiconductor, infrared |
| Detection gas/Range alarm point |
Measuring range, alarm point: see equipment nameplate |
| Power supply/信号输出 |
DC24V；4-20mA、RS485, two-bus, wireless |
| Whole machine power consumption |
1.2W |
| 工作温度 |
Flammable gases:-40℃～70℃; toxic gases:-10℃～55℃ |
| Working humidity |
≤95%RH(no condensation) |
| Atmospheric pressure |
86KPa～106KPa |
| Insulation resistance |
Normal environment≥100MΩ；94%RHHigh-humidity environment≥1MΩ |
| Working method |
24Hour continuous online monitoring |
| Explosion-proof method |
Flameproof type |
| Sampling method |
Diffusion type |
| Storage temperature |
-50℃～80℃ |
| Storage humidity |
≤95%RH |
| Equipment service life |
Three years |
Main Application Areas
- Chemical Reactor Safety — Continuous monitoring of hydrogen leaks in chemical reactors to prevent explosive atmospheres and ensure process safety.
- Petrochemical Plants — Detection of hydrogen gas in refining and processing units where hydrogen is used or produced, safeguarding personnel and equipment.
- Pharmaceutical Manufacturing — Monitoring hydrogen levels in hydrogenation reactions and other processes to maintain safe operating conditions.

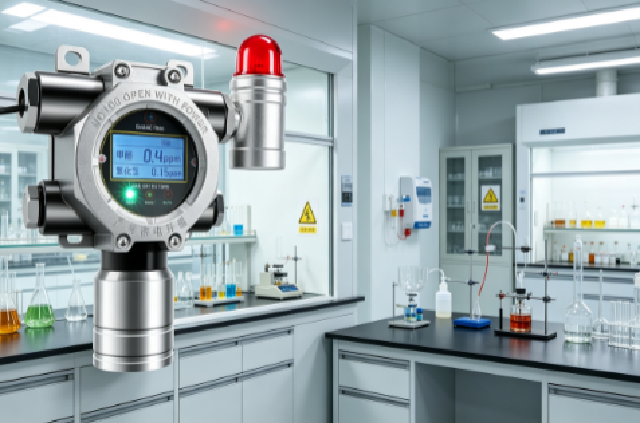

- Laboratory and Research Facilities — Early warning of hydrogen leaks in labs using hydrogen as a carrier gas or in experimental setups.
Keywords：hydrogen detector, chemical reactor gas detector, H2 leak detection, industrial gas sensor, catalytic combustion sensor, electrochemical sensor, infrared gas detector, real-time gas monitoring
