Product Introduction

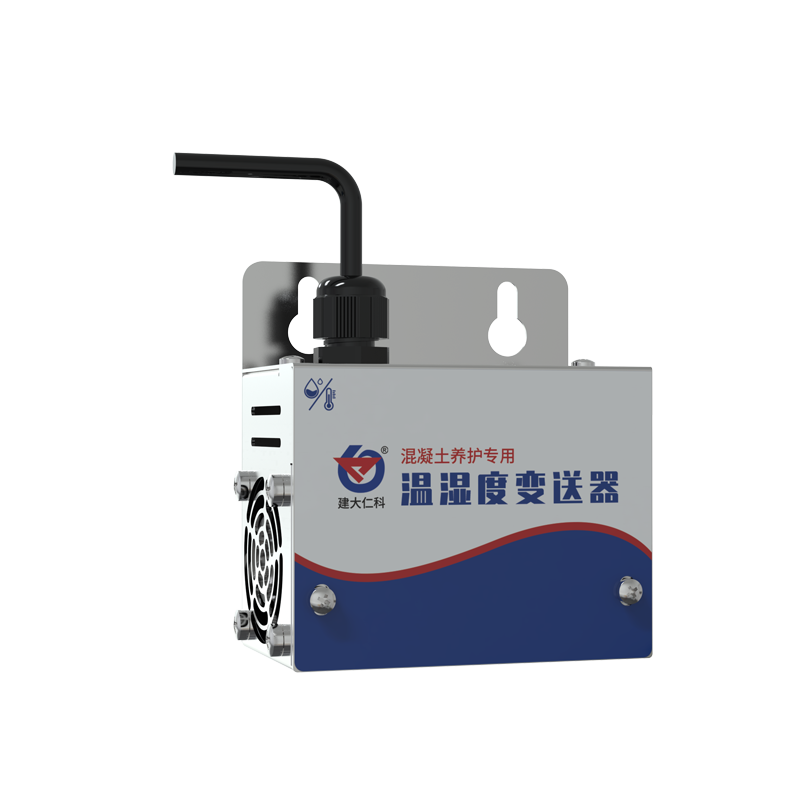

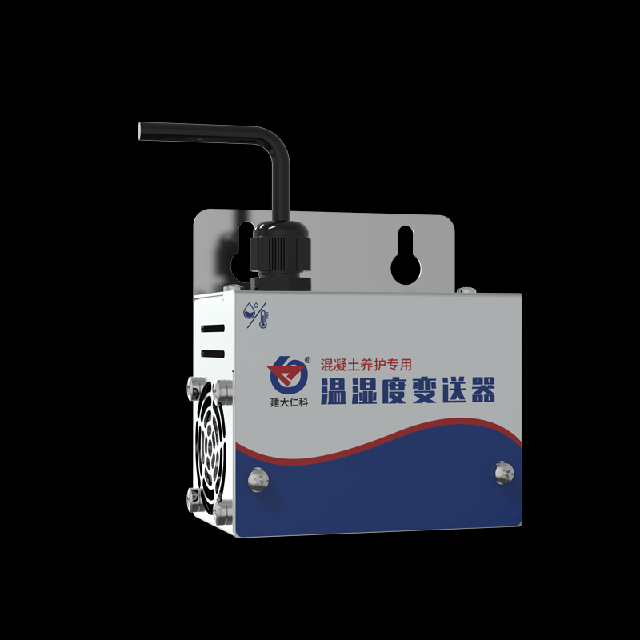

The concrete curing dedicated temperature and humidity transmitter is a temperature and humidity detection device developed by our company for the high-humidity environment required by the concrete curing industry. It can be used for a long time in concrete standard curing rooms with a relative humidity above 95%RH.
It adopts imported industrial-grade microprocessor chips, imported high-precision thermocouples, and low-temperature-drift temperature measurement chips, featuring high accuracy and excellent reliability and interchangeability.
The housing is made of 304 stainless steel, with a beautiful appearance and corrosion resistance, which can effectively ensure the service life of the sensor. It is also suitable for four-wire and three-wire connections.
It adopts standard industrial interface 4~20mA/0~10V/0~5V analog signal output, and can be connected to on-site digital display meters, PLCs, frequency converters, industrial control hosts and other equipment.
10~30V wide voltage range power supply, complete specifications, easy installation.
| DC Power Supply (Default) | DC 10~30V | |
| Maximum power consumption | Current output | 2.5W |
| Voltage output | 2.5W | |
| Accuracy | Humidity | ±2%RH（60%RH，25℃） |
| Temperature | ±0.4℃（25℃） | |
| Transmitter element temperature and humidity resistance | -40℃~+80℃，0%RH~100%RH | |
| Temperature and humidity refresh time | 1s | |
| 防护等级 | IP65 | |
| Long-term stability | Humidity | ≤1%RH/y |
| Temperature | ≤0.1℃/y | |
| Response time | Humidity | ≤4s (1m/s wind speed) |
| Temperature | ≤15s (1m/s wind speed) | |
| Output signal | Current output | 4~20mA |
| Voltage output | 0~5V/0~10V | |
| Load capacity | Current output | ≤600Ω |
| Voltage output | Output resistance ≤250Ω | |
| 安装方式 | Wall-mounted | |
| Opening size | 50mm | |
| Punching size | 5mm | |
Main Application Areas
- Concrete Curing Rooms — Monitors temperature and humidity in standard curing rooms to ensure proper concrete strength development.
- Construction Sites — Provides real-time environmental data for concrete pouring and curing processes in the field.
- Precast Concrete Plants — Ensures optimal curing conditions for precast concrete elements in controlled environments.
- Laboratory Testing — Used in material testing laboratories for precise climate control during concrete sample curing.
Keywords：concrete curing transmitter, temperature humidity transmitter, analog transmitter, humidity sensor, temperature sensor, concrete curing sensor, industrial transmitter, environmental monitoring
