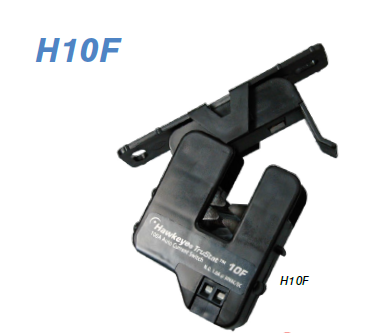

Current Monitoring Switch – Auto-Calibrating LV Out–H10F - LV Out–H10F
Sensor Power: Induced from monitored conductor
Insulation Rating: 600VAC RMS (UL), 300VAC RMS (CE)
Frequency Range: 50/60 Hz
Temperature Range: -15° to 60°C (5° to 140°F)
Humidity Range: 10-90% RH, non-condensing
Trip Point Calibration Learning Period: 30 seconds
Product Introduction
Applications of Current Monitoring Switch LV Out–H10F:
Monitor industrial process equipment status, +/- 20% learned current
Verify electrical service run counts
Monitor critical motor status (compressors, fuel, etc.)
Auto-calibration... reduces failure and installation costs
Microprocessor-based learning technology... automatically learns load at initial power-up, eliminating calibration-related labor
Simultaneously monitors undercurrent and overcurrent
Small size fits in small starter packages... saves space
Industrial learning features
Adjustable trip point (3.5-100A)
100% solid state... no mechanical moving parts to fail
Removable mounting bracket for flexible installation
5-year warranty
Current Monitoring Switch LV Out–H10FSpecifications:
Sensor Power: Induced from monitored conductor
Insulation Rating: 600VAC RMS (UL), 300VAC RMS (CE)
Frequency Range: 50/60 Hz
Temperature Range: -15° to 60°C (5° to 140°F)
Humidity Range: 10-90% RH, non-condensing
Trip Point Calibration Learning Period: 30 seconds
Trip Point Range: +/- 20% above and below learned current
Normal-to-Alarm Output Delay: up to 1 second
Alarm-to-Normal Output Delay: typically 30 seconds
Agency Approvals: UL 508 Open Device Listing, CE: EN61010-1:2001-02, CAT III, deg. 2, basic insulation
