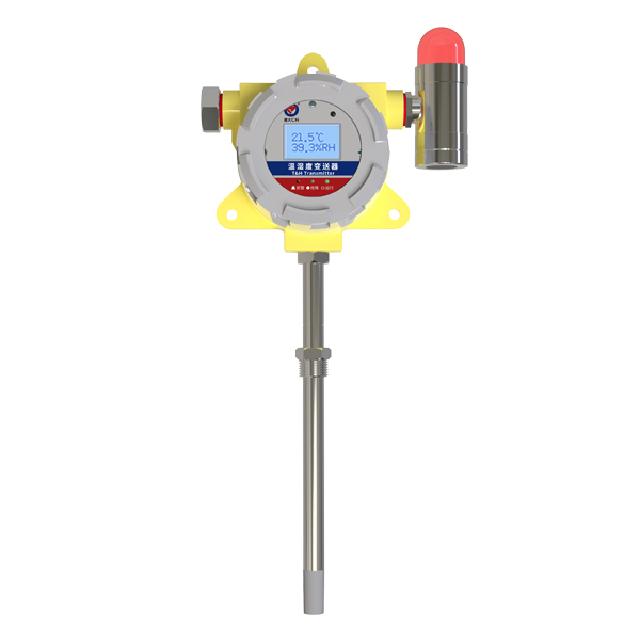

Product Introduction
Adopts Swiss original imported temperature measurement unit, with high measurement accuracy and strong anti-interference capability.
Adopts remote infrared remote control technology, parameters can be modified without disassembly.
485 communication interface standard ModBus-RTU communication protocol, address and baud rate configurable, maximum communication distance 2000 meters.
Optional high-quality LCD display, values can be viewed directly on site, and can be clearly displayed even at night.
On-site power supply adopts 10~30V DC wide voltage power supply, which can adapt to various DC power sources on site.
The product adopts a wall-mounted explosion-proof enclosure, easy to install, protection rating IP66 (the cable outlet end requires the customer to use a self-provided explosion-proof flexible conduit), and can be applied to harsh outdoor on-site environments.
| DC Power Supply (Default) | DC 10-30V | |
| Average Power Consumption | 0.35W | |
| Working Environment | With display: -20℃~+60℃, 0%RH~95%RH (non-condensing) Without display: -40℃~+60℃, 0%RH~95%RH (non-condensing) |
|
| Temperature and Humidity Measurement Range | With display: -20℃~+60℃, 0%RH~100%RH Without display: -40℃~+120℃, default -40℃~+80℃ |
|
| Temperature Display Resolution | 0.1℃ | |
| Humidity Display Resolution | 0.1RH% | |
| Measurement accuracy | Humidity | ±3%RH（60%RH，25℃） |
| Temperature | ±0.5℃（25℃） | |
| Output signal | RS485 (ModBus protocol) | |
| Long-term stability | Humidity | ≤1%RH/y |
| Temperature | ≤0.1℃/y | |
| 安装方式 | Wall-mounted | |
| Relay load capacity | 250VAC 1A/30VDC 1A | |
Main Application Areas
- Oil and Gas Industry — Monitoring temperature and humidity in explosive atmospheres on offshore platforms and refineries.
- Chemical Processing — Ensuring safe environmental control in chemical plants with flammable vapors.
- Pharmaceutical Manufacturing — Maintaining precise cleanroom conditions in hazardous areas.
- HVAC Systems — Duct air monitoring in industrial buildings with explosion-proof requirements.
- Mining Operations — Temperature and humidity measurement in underground mines with explosive dust.
