Product Introduction

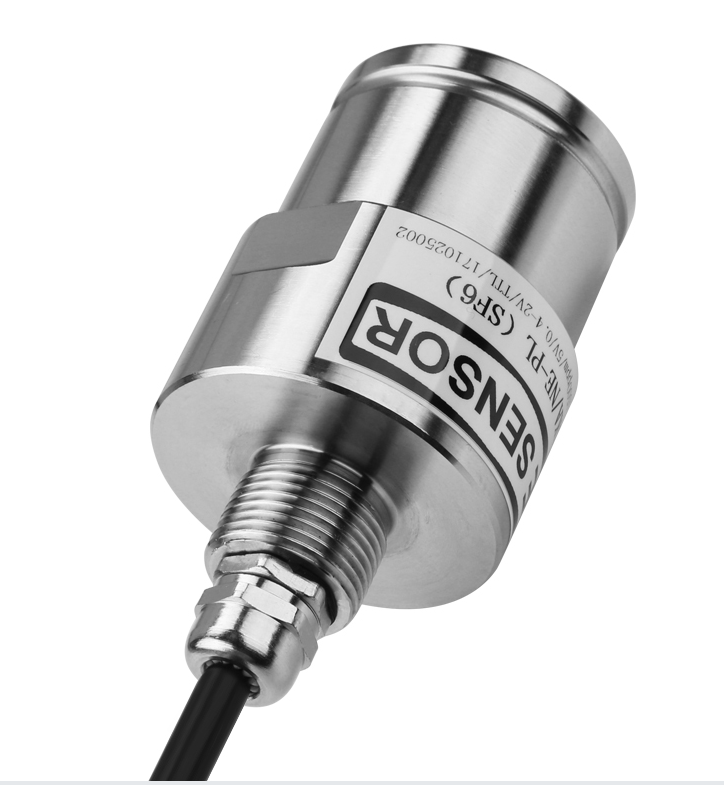

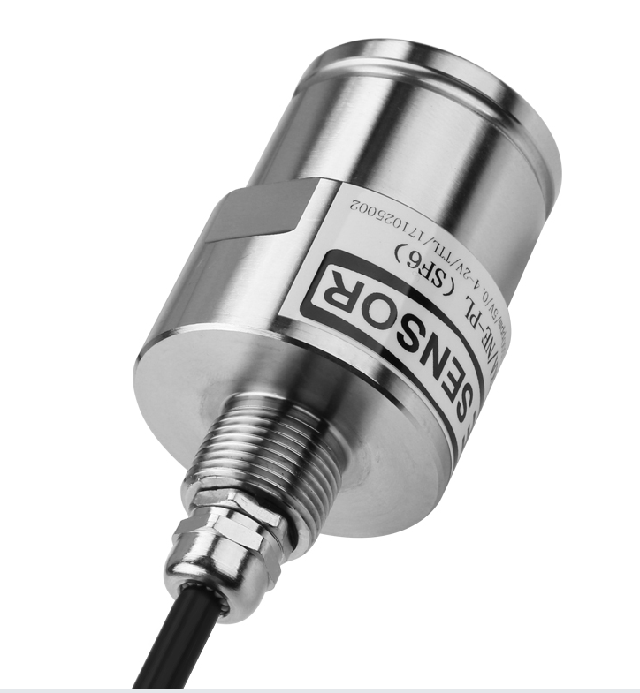

This gas cup-type gas probe is a compact, portable, and high-precision detection instrument developed by Shengkaian using years of experience, specifically for fields with a high risk of gas leakage such as chemical plants, boiler rooms, environmental monitoring, scientific research and security, tunnel construction, and waste treatment plants.
This probe is compatible with sensors based on various principles such as infrared, electrochemical, catalytic, semiconductor, and photoionization. It adopts intrinsically safe technology, comes with temperature compensation, and is precisely calibrated at the factory. Users only need to insert the sensor module into the probe, and the module will automatically upload signals to the control board in real time, with no need for secondary calibration during use. Explosion-proof standard design avoids the risk of installing sensor modules in hazardous locations with power supply. Industrial-grade standard4-20mAAnalog output,Modbus485Standard protocol, providing functions such as remote debugging, troubleshooting, and calibration signals.
II. Technical Advantages
- Intrinsically safe design, certified to explosion-proof standards, safe and reliable performance;
316Stainless steel housing, good corrosion resistance, suitable for various harsh working conditions
- Comes with zero fine-tuning and target point locking functions; when replacing different gas sensors, there is no need to change the existing housing and wiring, just replace the sensor module board;
- The detection unit features automatic diagnosis and problem identification functions, so users need not worry about the instrument's working status;
- Self-calibration can be combined withPLCDirect connection to controller;
- Can be connected to a computer for communication;
- Analog Voltage/Current and serial port output simultaneously, convenient for user operation and maintenance;
- Industrial-gradeEMCModule, capable of calmly coping with interference from electrical and other factors;
- Original imported sensor, optimized with secondary algorithms, fast response speed, low error rate;
- Low power consumption, can be powered by lithium battery;
- Complete range of gas detection types, professional guidance services available.
Main Application Areas
- Chemical Plants — Continuous monitoring of vinyl chloride leaks in production, storage, and handling areas to protect personnel and prevent explosions.
- Boiler Rooms — Detection of hazardous gas accumulation in boiler rooms and utility spaces where flammable or toxic gases may concentrate.
- Environmental Monitoring — Ambient air quality surveillance for vinyl chloride emissions at industrial sites and surrounding communities.
- Tunnel Construction — Real-time gas leak detection in confined tunnel workspaces to safeguard workers during construction and excavation.
- Waste Treatment Plants — Monitoring of toxic and flammable gas release in waste processing and landfill facilities to ensure operational safety.
Keywords：vinyl chloride gas detector, C2H3Cl gas probe, gas cup probe, industrial gas sensor, explosion-proof gas detector, electrochemical gas sensor, VOC gas monitor, toxic gas leak detector
