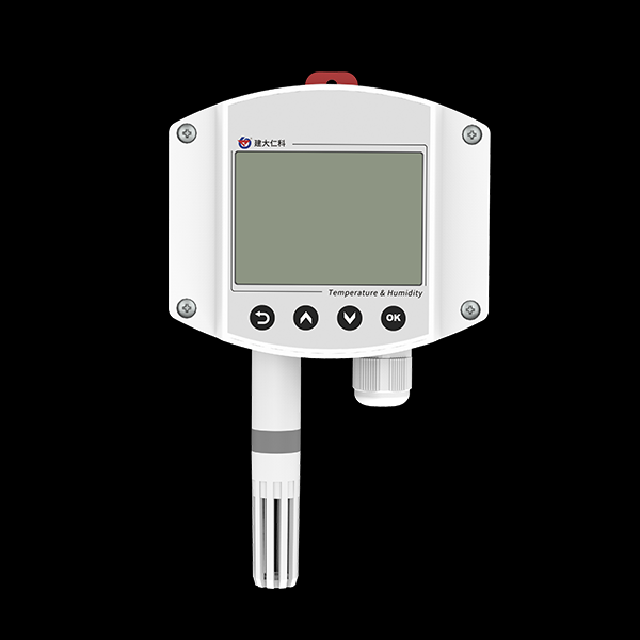

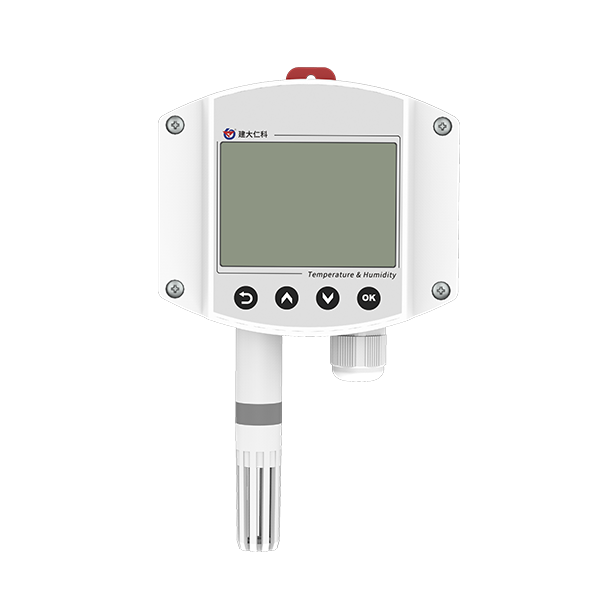

Product Introduction
Adopts imported American industrial-grade microprocessor chip and imported high-precision temperature and humidity sensor, with good long-term stability and minimal drift.
Adopts standard industrial interface 4~20mA/0~10V/0~5V analog signal output, which can be connected to on-site digital displays, PLCs, frequency converters, industrial control hosts and other equipment.
The housing features an LCD liquid crystal display screen, which is aesthetically pleasing and has a high dust protection rating.
The device housing features a button design, allowing parameter settings and modifications via buttons, making operation very convenient.
| Power supply | DC selection | DC 10~30V (0-10V recommended 24V) |
| AC/DC selection | DC15~36V or AC24V (±20%) | |
| Maximum power consumption | 1.5W | |
| Accuracy | Humidity | ±2%RH（60%RH，25℃） |
| Temperature | ±0.2℃（25℃） | |
| Temperature range | Default -40℃~+80℃ | |
| Humidity range | 0%RH-100%RH | |
| Transmitter circuit operating temperature and humidity | -20℃~+60℃, 0%RH~99.9%RH (non-condensing) | |
| Probe operating temperature | Default -40℃~+80℃ | |
| Probe operating humidity | 0%RH-100%RH | |
| Long-term stability | Humidity | ≤0.25%RH/y |
| Temperature | ≤0.03℃/y | |
| Response time | Temperature | ≤25s (1m/s wind speed) |
| Humidity | ≤8s (1m/s wind speed) | |
| Maximum allowable airflow speed | 16m/s | |
| Output signal | Current output | 4~20mA |
| Voltage output | 0~5V/0~10V | |
| Load capacity | Voltage output | Output resistance ≤1kΩ |
| Current output | ≤600Ω | |
Main Application Areas
- HVAC Systems — Monitor and control temperature and humidity in heating, ventilation, and air conditioning systems for optimal indoor climate.
- Industrial Process Control — Ensure precise environmental conditions in manufacturing processes, such as textile, food, and pharmaceutical production.
- Greenhouses and Agriculture — Maintain optimal growing conditions by monitoring temperature and humidity in greenhouses and agricultural facilities.
- Warehouses and Storage — Protect sensitive goods by monitoring environmental conditions in warehouses, cold storage, and logistics centers.
- Weather Stations — Collect accurate temperature and humidity data for meteorological and environmental monitoring applications.
