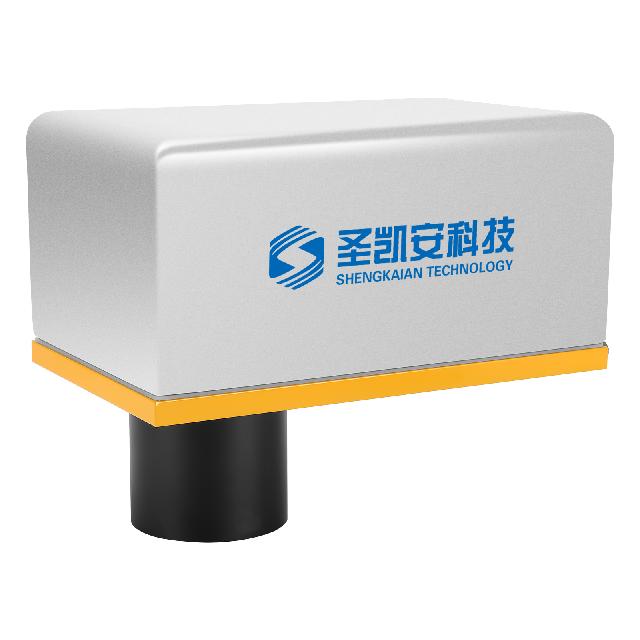

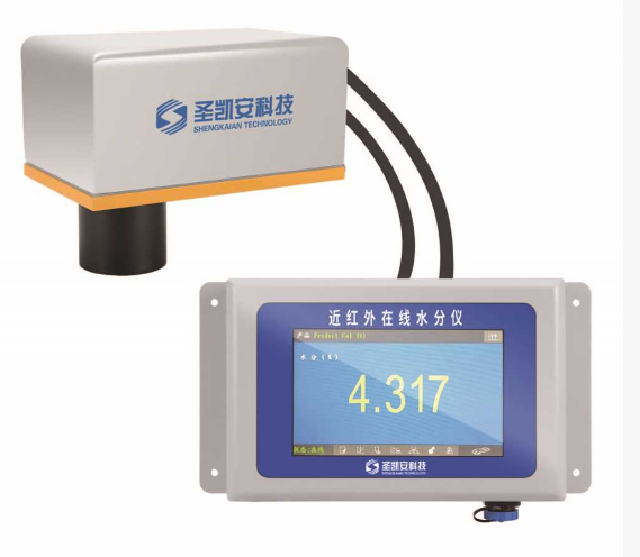

Halogen moisture analyzer forage moisture detector - AMT/SFY-HW

Halogen moisture analyzer forage moisture detector

The online near-infrared moisture tester adopts the most advanced three-band six-beam near-infrared diffuse reflection principle internationally, which can quickly and continuously measure the moisture content of materials on the conveyor belt, and non-contact with the measured material, achieving real-time dynamic monitoring of material moisture content, with a response time of only5ms, realizing rapid real-time monitoring and feedback of product moisture content, greatly meeting the strict requirements of products for moisture management. Due to the non-contact measurement method, it will not cause any damage to the measured material, thus providing an accurate and efficient solution for moisture control in the production process.



An infrared moisture meter is an instrument that uses the principle that water molecules have strong absorption characteristics for infrared light of specific wavelengths to quickly and non-contact measure the moisture content of materials-1-4. It is widely used in industrial production lines as a real-time quality control and process optimization tool-1-5。

💡 Working principle

Its core is based on near-infrared spectroscopy technology: near-infrared light of specific wavelengths (such as1.94μm) when irradiating the material, it will be absorbed by water molecules, and the reflected light energy will be correspondingly weakened-2-4. The instrument calculates the moisture content of the material by analyzing the energy loss of the reflected light-1. Common three-wavelength or eight-beam technology can eliminate interference from non-moisture factors such as material color and structure, making the measurement more accurate-1-3。

Halogen moisture analyzer forage moisture detector

✨ Core advantages

•

Non-contact measurement: No contact with the material, no wear or pollution, suitable for high-speed moving production lines-1-6-5。

•
•

Real-time online detection: Can provide data continuously and quickly (response time can reach millisecond level), making it convenient for immediate process adjustment-2-6-11。

•
•

No frequent maintenance needed: Compared with manual oven method or electrode method, it does not require frequent calibration, has no wearing parts, and has low use and maintenance costs-1-4。

•
•

High measurement accuracy: Typical measurement accuracy can reachBetween 0.1% and 0.5%-2-5。

•

🏭 Application fields

The application range of infrared moisture meters is very wide, covering almost all industries that need to control moisture-1-3：

Industry	Application examples
Tobacco industry	Detect the moisture of tobacco leaves, cut tobacco, and tobacco stems to ensure taste and combustibility-3-4。
Grain and food	Detect the moisture of grains, flour, biscuits, feed, and other raw materials and finished products-2-6。
Wood processing	Online detection of moisture in particleboard and density board raw materials and semi-finished products-3-4。
Chemical and pharmaceutical industries	Measure the moisture content of fertilizers, plastic pellets, chemical powders, and pharmaceutical granules-1-8。
Iron and steel and metallurgy	Measure the moisture of sintered mixtures, mineral powder, concentrate, and other raw materials, which is a key monitoring point in the sintering process-3-4。
Building materials	Detect the moisture of quartz sand, ceramic powder, gypsum board, and other materials-3-8。



Halogen moisture analyzer forage moisture detector

📊 Key technical parameters

Different models of infrared moisture meters have different parameters. The following are some typical parameter ranges for your reference-2-5-11：

Parameter items	Typical indicators
Measurement Range	0% ~ 60% or 0% ~ 95%
Measurement accuracy	±0.1% ~ ±0.5% (depending on the material)
分辨率	0.01% or 0.001%
Measurement distance	Generally 150mm ~ 400mm
Response time	Up to0.0125 seconds to 1 second
Communication interface	RS485 (Modbus), 4-20mA, RS232, Ethernet, etc.
防护等级	Industrial grade usuallyIP65 to IP67

🔍 How to choose

•

Clarify requirements: First, determine whether it is used forOnline production lineOrLaboratory spot check. Online type needs a sturdy shell and real-time communication capability, while laboratory benchtop type focuses more on high precision and sample adaptability-9-10。

•
•

Evaluate materials: Different materials (such as dark powders, lump ores, transparent films) have different reflection characteristics for infrared light, and it is necessary to confirm whether the equipment can effectively measure your material-1-8。

•
•

Consider the environment: If the installation environment has high dust, high humidity, or high temperature, choose a model with good sealing and cooling protection functions-5-8。

•

What kind of material do you mainly want to detect? Is it for real-time monitoring on the production line or laboratory testing? Tell me the specific application scenario, and I can help you analyze a more suitable selection plan.
