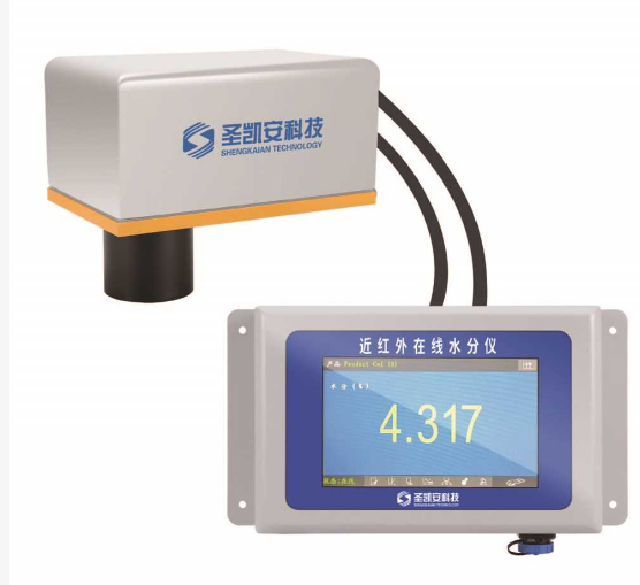

Saint Kaian SKA/JGW-SFY Papermaking Online Near-Infrared Moisture Meter Papermaking Moisture Online Monitoring - SKA/JGW-SFY
Measurement principle: near-infrared diffuse reflectance spectroscopy (O-H bond characteristic absorption, 1450nm/1940nm)
• Measurement range: 0-60% moisture content (customizable 0-70%), suitable for granular, powder, and sheet materials; not suitable for water seepage, slurry, or highly reflective metals
• Measurement accuracy: ±0.2% (low moisture range 0-15%); ±0.5% (high moisture range >15%), accuracy depends on material modeling calibration
• Resolution: 0.01%
• Repeatability: ≤±0.1%
• Response time: 0.2-30s (filtering can be set)
• Spot diameter: 50-80mm (varies with installation distance)
• Measurement distance: 200-400mm (from probe to material surface)
Product Introduction
Saint Kaian SKA/JGW-SFY Papermaking Online Near-Infrared Moisture Meter - Product Overview
The Saint Kaian SKA/JGW-SFY papermaking online near-infrared moisture meter is an online detection device used for papermaking moisture online monitoring. Search keywords: papermaking online near-infrared moisture meter, papermaking moisture online monitoring, online near-infrared moisture meter. The instrument can non-contact measure the moisture content in paper, cardboard, and pulp. In papermaking moisture online monitoring, the Saint Kaian SKA/JGW-SFY papermaking online near-infrared moisture meter can provide real-time moisture data feedback, helping enterprises control paper quality and reduce paper breakage and energy consumption.
Saint Kaian SKA/JGW-SFY Papermaking Online Near-Infrared Moisture Meter - Working Principle
The Saint Kaian SKA/JGW-SFY papermaking online near-infrared moisture meter utilizes the absorption characteristics of water molecules to near-infrared light, calculating paper moisture by emitting light beams of specific wavelengths and detecting reflected light intensity. In papermaking moisture online monitoring, the Saint Kaian SKA/JGW-SFY papermaking online near-infrared moisture meter adopts a non-contact measurement method that does not damage the paper surface. The instrument has a fast response speed and can adapt to high-speed paper machines. Papermaking moisture online monitoring places high demands on the stability and anti-interference ability of the Saint Kaian SKA/JGW-SFY papermaking online near-infrared moisture meter, requiring adaptation to high-temperature and high-humidity environments.
Saint Kaian SKA/JGW-SFY Papermaking Online Near-Infrared Moisture Meter - Application Scenarios
The Saint Kaian SKA/JGW-SFY papermaking online near-infrared moisture meter is widely used in the wire section, press section, dryer section, and reel section of the papermaking industry. Papermaking moisture online monitoring can help enterprises control the drying curve and improve paper strength. The Saint Kaian SKA/JGW-SFY papermaking online near-infrared moisture meter can be installed at the dryer outlet, paper machine, and rewinder. In papermaking moisture online monitoring, the Saint Kaian SKA/JGW-SFY papermaking online near-infrared moisture meter can be linked with DCS and QCS systems to achieve automatic moisture control.
Saint Kaian SKA/JGW-SFY Papermaking Online Near-Infrared Moisture Meter - Technical Advantages
The Saint Kaian SKA/JGW-SFY papermaking online near-infrared moisture meter has advantages such as non-contact, fast, and continuous measurement. In papermaking moisture online monitoring, the Saint Kaian SKA/JGW-SFY papermaking online near-infrared moisture meter can reduce manual sampling and improve detection efficiency. The instrument adopts an industrial-grade design with a high protection rating, suitable for the papermaking workshop environment. Papermaking moisture online monitoring helps enterprises reduce energy consumption and improve product quality. When choosing the Saint Kaian SKA/JGW-SFY papermaking online near-infrared moisture meter, attention should be paid to the measurement range, accuracy, response time, and installation method to ensure long-term stable operation of papermaking moisture online monitoring.
Main Application Areas
- Paper Manufacturing — Real-time moisture monitoring of paper and paperboard during production to ensure consistent quality and reduce waste.
- Pulp Processing — Non-contact moisture measurement of pulp to optimize drying processes and improve efficiency.
- Paperboard Production — Online moisture control for paperboard to prevent warping and maintain structural integrity.
- Quality Control — Continuous moisture data feedback for quality assurance and process optimization in paper mills.
