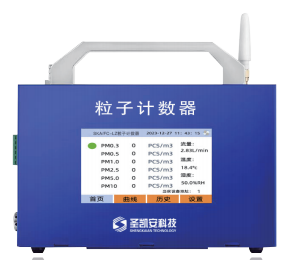

Remote Airborne Particle Sensor for Animal Room Cleanliness Monitoring - SKA/LZ-JSQ
Measurement performance
• Detection principle: light scattering method
• Sampling flow rate: 2.83L/min (0.1cfm, most commonly used in clean workshops); optional 28.3L/min
• Particle size channels: standard 0.3μm, 0.5μm, 1.0μm, 2.0μm, 5.0μm, 10μm
• Measurement range: 0~999999 particles/L
• Repeatability: ±10%
• Sampling period: 1~60s adjustable
• Light source: laser diode
Product Introduction

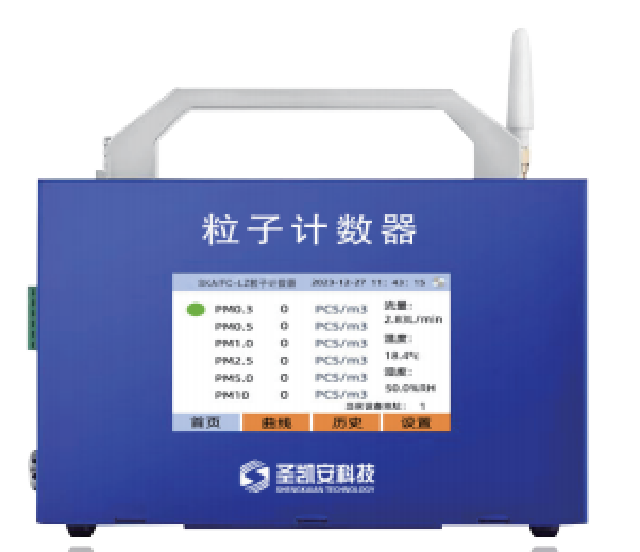

Remote Airborne Particle Sensor for Animal Room Cleanliness Monitoring - Product Overview
The remote airborne particle sensor is a remote airborne particle detection device used for animal room cleanliness monitoring. Search keywords: remote airborne particle sensor, animal room cleanliness monitoring, airborne particle counter. The instrument can remotely monitor the number of airborne particles of different sizes in animal rooms through a network, suitable for environmental monitoring in experimental animal rooms, SPF animal rooms, and animal laboratories. In animal room cleanliness monitoring, the remote airborne particle sensor can reflect cleanliness changes in real time, helping managers promptly identify pollution sources and take control measures.
Remote Airborne Particle Sensor for Animal Room Cleanliness Monitoring - Working Principle
The remote airborne particle sensor utilizes laser scattering principles, drawing air through a sampling tube into the detection chamber. When airborne particles pass through the laser beam, they generate scattered light, which is received by a photodetector and converted into electrical signals to calculate particle size and concentration. In animal room cleanliness monitoring, the remote airborne particle sensor can simultaneously measure multiple particle size channels, supporting RS485, Modbus, Ethernet, and wireless communication, and can be integrated into cleanroom monitoring systems. The instrument features remote calibration and fault self-diagnosis functions, making it suitable for unattended monitoring.
Remote Airborne Particle Sensor for Animal Room Cleanliness Monitoring - Application Scenarios
The remote airborne particle sensor is widely used in breeding areas, experimental areas, buffer zones, and personnel entrances of animal rooms. In animal room cleanliness monitoring, the remote airborne particle sensor can be installed in critical areas, personnel entrances, and return air ducts. The instrument can be linked with air conditioning and purification systems, audible and visual alarms, and monitoring platforms to achieve automatic adjustment and alarming. For animal rooms requiring continuous monitoring, the remote airborne particle sensor can also form a multi-point monitoring network, uploading data uniformly to a control center.
Remote Airborne Particle Sensor for Animal Room Cleanliness Monitoring - Technical Advantages
The remote airborne particle sensor has advantages such as high detection accuracy, fast response speed, and convenient remote monitoring. In animal room cleanliness monitoring, the remote airborne particle sensor adopts a long-life laser light source and anti-contamination optical design, suitable for long-term operation. The instrument supports data storage, printing, and remote communication, with convenient maintenance. When selecting a remote airborne particle sensor, attention should be paid to particle size channels, sampling flow rate, detection range, accuracy, and communication methods to ensure it meets animal room cleanliness monitoring requirements.
Main Application Areas
- SPF Animal Facilities — Continuous monitoring of airborne particles to maintain specific pathogen-free conditions in animal rooms.
- Animal Laboratories — Real-time particle counting to ensure cleanliness and prevent contamination in research environments.
- Cleanrooms — Remote particle monitoring for cleanroom classification and compliance with ISO standards.
- Pharmaceutical Production — Monitoring of particle levels in aseptic processing areas to ensure product safety.
- Hospital Operating Rooms — Tracking airborne particle concentrations to maintain sterile surgical environments.
