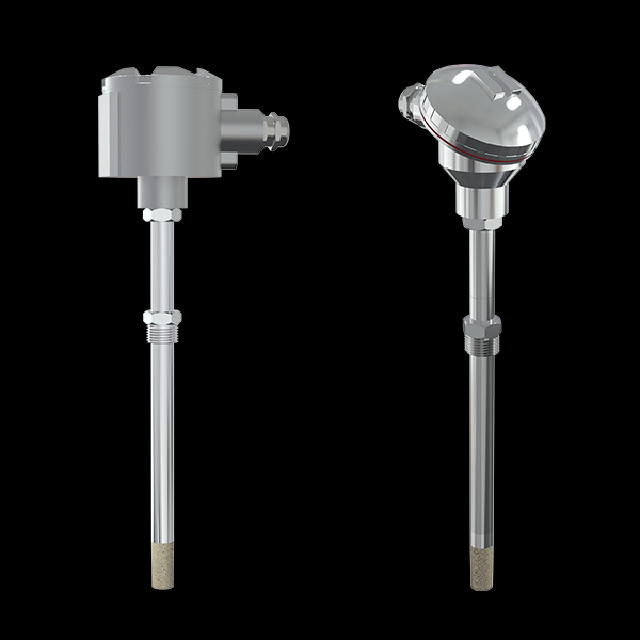

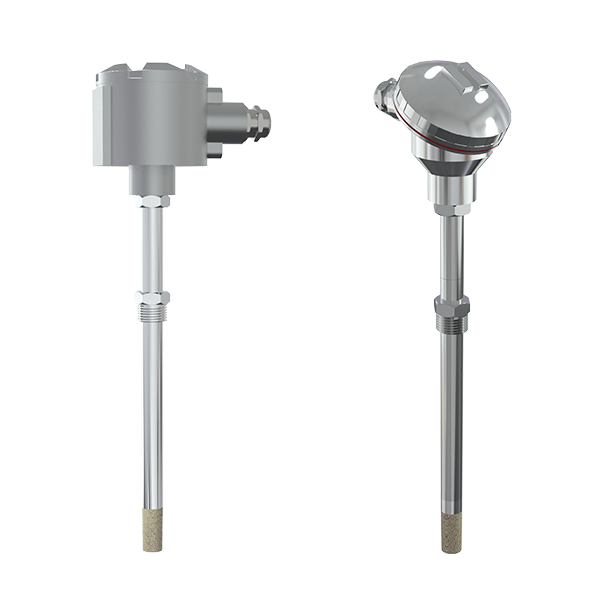

Product Introduction
Adopts imported temperature measurement unit, with high measurement accuracy and strong anti-interference ability.
The 485 communication interface uses the standard ModBus-RTU communication protocol. The address and baud rate can be set, and the maximum communication distance is 2000m.
The on-site power supply adopts 7~30V DC wide-voltage power supply, which can adapt to various DC power sources on site.
The product adopts G1/2 thread installation, which is convenient for installation. Its protection rating is IP65, making it suitable for harsh outdoor on-site environments.
| DC Power Supply (Default) | DC 7-30V | |
| Average Power Consumption | 0.35W | |
| Working Environment | -40℃~+60℃, 0%RH~95%RH (non-condensing) | |
| Temperature and Humidity Measurement Range | -40℃~+120℃, default -40℃~+80℃ 0%RH~100%RH |
|
| Temperature Display Resolution | 0.1℃ | |
| Humidity Display Resolution | 0.1RH% | |
| Measurement accuracy | Humidity | ±3%RH（60%RH，25℃） |
| Temperature | ±0.5℃（25℃） | |
| Output signal | RS485 (ModBus protocol) | |
| Long-term stability | Humidity | ≤1%RH/y |
| Temperature | ≤0.1℃/y | |
| 安装方式 | G1/2 thread installation | |
| Waterproof rating | IP65 | |
Main Application Areas
- HVAC Systems — Monitors temperature and humidity in air ducts for efficient climate control.
- Industrial Process Control — Ensures precise environmental conditions in manufacturing processes.
- Cleanrooms — Maintains strict temperature and humidity levels for contamination control.
- Pharmaceutical Storage — Provides reliable monitoring for sensitive drug storage areas.
- Greenhouses — Optimizes growing conditions by tracking duct temperature and humidity.
