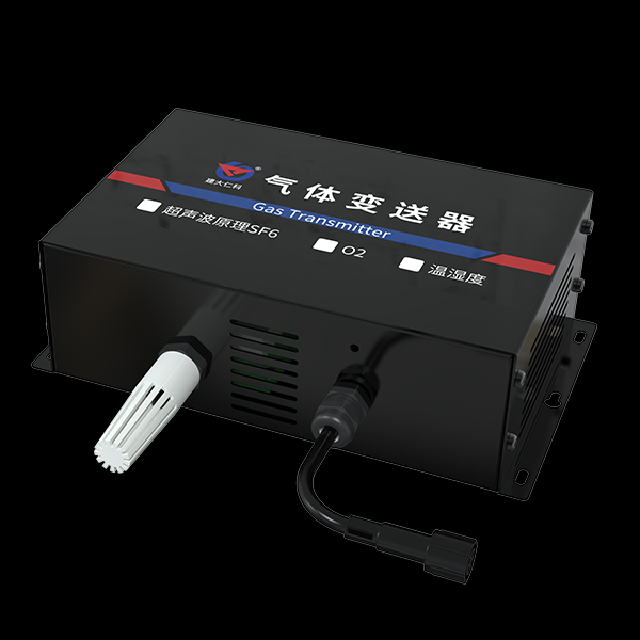

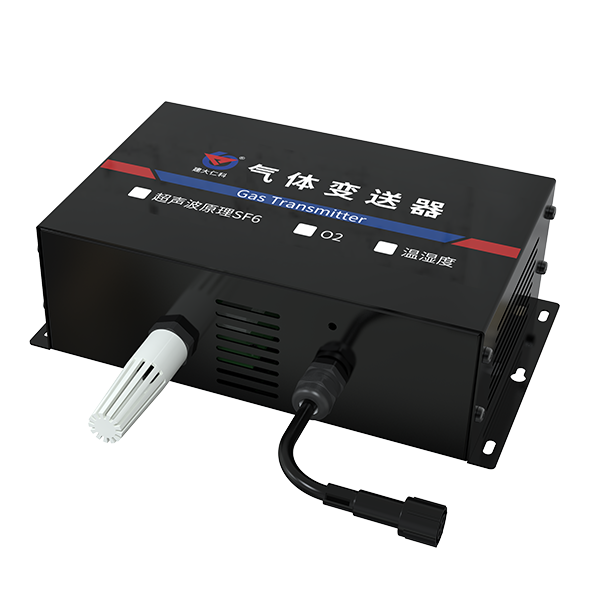

Product Introduction
Sulfur hexafluoride is detected using ultrasonic principles, featuring rapid and sensitive response, wide measurement range, and long lifespan.
It also has the function of monitoring oxygen, with a range of 0-30%VOL, high measurement accuracy, up to within ±3%FS, and repeatability up to within 1%.
Optional temperature and humidity, precise measurement of environmental temperature and humidity changes.
The product adopts a 485 communication interface, standard ModBus-RTU communication protocol, communication address and baud rate are configurable, with a maximum communication distance of 2000m.
10-30V DC wide voltage power supply.
Reasonable structure, avoiding long-term accumulation of SF6 inside the housing.
| Item | Technical Specifications |
| Power consumption | 1.5W |
| SF6 resolution | 10ppm |
| SF6 maximum permissible error | ±10% （@1000ppm,60%RH,25℃） |
| SF6 range | 0-2000ppm |
| SF6 zero drift | ±3ppm |
| SF6 stability | ≤2% signal value/month |
| SF6 response time | ≤5min |
| SF6 warm-up time | ≥30min |
| SF6 repeatability | ≤5% |
| O2 resolution | 0. 1%VOL |
| O2 accuracy | ±3%FS |
| O2 range | 0~30%VOL |
| O2 service life | 2 years (default), 5 years, 10 years optional |
| O2 repeatability | ≤1% |
| O2 warm-up time | ≥5min |
| O2 response time | ≤10s |
| O2 stability | ≤5% signal value/year |
| Temperature measurement range | -40℃~+80℃ |
| Temperature Accuracy | ±0.5℃ （@25℃） |
| Humidity measurement range | 0~99%RH |
| Humidity accuracy | ±3%RH （@ 60%RH,25℃） |
| Pressure range | 86~ 106kPa |
| 工作温度 | - 10~40℃ |
| Working humidity | ≤98%RH non-condensing |
Main Application Areas
- Power Industry — SF6 leak detection and environmental monitoring in gas-insulated switchgear and substations.
- Industrial Safety — Oxygen and humidity monitoring in confined spaces to prevent suffocation and corrosion.
- HVAC Systems — Temperature and humidity control in critical HVAC applications.
- Environmental Monitoring — Continuous monitoring of SF6 emissions and ambient conditions.
