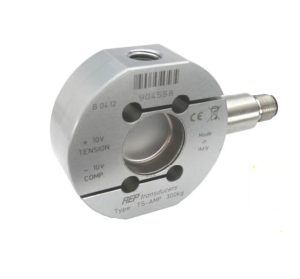

Product Introduction
I. TSAMP Load Cell Parameter Specifications:
| Accuracy |
0.03% |
| Rated Load (Emax) |
10 - 25 - 50 -100 - 200 - 300 - 500 1 - 2 - 2.5 - 5 -7.5 t |
| Rated Sensitivity |
4-20 mA (3-wire), ±5V or ±10V |
| Calibration Tolerance |
<±0.1% |
| Nonlinearity |
≤ ±0.023% |
| Non-repeatability |
≤ ±0.015% |
| Temperature Effect (10°C) |
|
| a) Zero |
≤ ±0.028% |
| b) Span |
≤ ±0.012% |
| Rated Supply Voltage |
4-20mA and ±5V: 12-24Vdc ±10V：18-24Vdc |
| Max Supply Voltage |
28VDC |
| Max Current (No Load) |
30mA |
| Load Impedance |
min. 3KΩ |
| a) Voltage |
|
| b) Current |
0~470Ω |
| Insulation Resistance |
>2GΩ |
| Zero Balance |
± 1% |
| Response Frequency |
0.5~5KHz |
| Mechanical Limits Relative to Rated Load |
|
| a) Min Load |
0% |
| b) Working Load |
120% |
| c) Max Allowable Load |
150% |
| d) Damage Load |
>300% |
| e) Max Lateral Load |
100% |
| f) Max Allowable Dynamic Load |
50% |
| Replacement of Rated Load |
-0.2mm |
| Reference Temperature |
23°C |
| Rated Temperature Range |
-10~40°C |
| Operating Temperature |
-20~70°C |
| Storage Temperature |
-20~80°C |
| Weight |
0.6kg 1.2kg 2.6kg |
| Protection Class |
IP65 |
| Material |
Stainless Steel |
| Connection |
M12 4-pin connector |
| Recommended Connector |
German rod EM12 - EM17 - EM20 - EM25 |

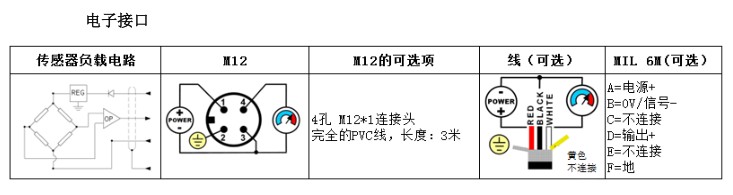

II. TSAMP Load Cell Interface Specifications:
