Product Introduction

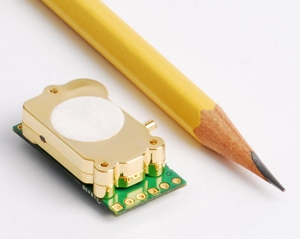

Amphenol CO2 Sensor CO2 Sensor T6703 Description:
The T6703 CO2 series is well suited for applications requiring measurement and control of CO2 concentration to ensure indoor air quality and energy-saving applications such as ventilation control.
All units are calibrated at the factory to ensure a measurable CO2 concentration range of up to 5000 ppm while maintaining accuracy.
Protected by US Patents US6526801, US6255653, US6410918, and US6588250. (Patent pending)
Amphenol CO2 Sensor CO2 Sensor T6703 Product Features:
Cost-effective gas sensing solution for OEMs.
With Telaire's patented ABC Logic™ software, no calibration is required in most applications. Lifetime calibration guarantee.
Reliable sensor designed based on over 20 years of engineering and manufacturing expertise.
Flexible CO2 sensor platform that can interact with other microcontroller devices.
Compact design with a wide range of interface options for easy integration.
Amphenol CO2 Sensor CO2 Sensor T6703 Applications:
Air quality
Ventilation control
Amphenol CO2 Sensor CO2 Sensor T6703 Parameters:
| Method |
Non-dispersive infrared (NDIR), gold-plated optics, diffusion sampling (with Telaire patented ABC Logic self-calibration algorithm) |
| Measurement Range |
0 to 5000 ppm |
| Dimensions |
1.18 inches x 0.61 inches x 0.34 inches |
| Accuracy |
400-5000 ppm ±45 ppm ±3% of reading |
| Temperature Dependence |
0.5% full scale (FS) per degree Celsius |
| Reliability |
Less than 2% of full scale over sensor lifetime (typically 15 years) |
| Pressure Dependence |
0.13% of reading per mm Hg |
| Calibration Interval |
Not required |
| Response Time |
Typically less than 3 minutes for 90% step change |
| Signal Update |
Updated every 5 seconds |
| Operating Conditions |
14°F to 140°F (-10°C to 60°C) 0-95% relative humidity, non-condensing
|
| Storage Conditions |
-22°F to 158°F (-30°C to 70°C) |
| Output |
Digital: I2C slave up to 100 kHz |
| PWM output modes |
Two options: period of 1002 ms (approximately 1 Hz) or period of 40 microseconds (25 kHz) |
| Power Requirements |
4.5-5.5 VDC |
| Interface Connection |
Designed for 0.1-inch (2.54 mm) pitch female headers. Headers not included. |
