Product Introduction

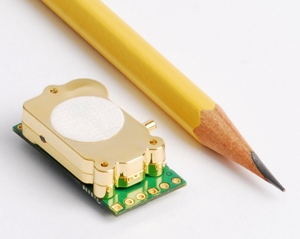

Amphenol CO2 Sensor CO2 Sensor T6713 Description:
The T6713 carbon dioxide series is very suitable for applications that need to measure and control carbon dioxide concentration to ensure indoor air quality and energy-saving applications such as ventilation control.
All units are calibrated before leaving the factory, ensuring a measurable carbon dioxide concentration range of up to 5000 ppm while maintaining accuracy.
Protected by US patents US6526801, US6255653, US6410918 and US6588250. (Patent pending)
Amphenol CO2 Sensor CO2 Sensor T6713 Product Features:
Cost-effective gas sensing solution for OEM manufacturers.
With Telaire patented ABC Logic™ software, no calibration is required in most applications. Lifetime calibration guarantee.
Reliable sensor designed based on over 20 years of engineering and manufacturing expertise.
Has a flexible carbon dioxide sensor platform that can interact with other microcontroller devices.
Compact design and wide interface selection, the product can be easily integrated.
Amphenol CO2 Sensor CO2 Sensor T6713 Applications:
Air Quality
Ventilation Control
Amphenol CO2 Sensor CO2 Sensor T6713 Parameters:
| Method |
Non-dispersive infrared (NDIR), gold-plated optics, diffusion sampling (using Telaire patented ABC logic self-calibration algorithm) |
| Measurement Range |
0 to 5000 ppm |
| Dimensions |
1.18 inches X 0.61 inches X 0.34 inches |
| Accuracy |
400-5000 ppm ±45 ppm ± 3% of reading |
| Temperature Characteristics |
0.5% full scale (FS) per degree Celsius |
| Reliability |
Less than 2% of full scale over sensor lifetime (typically 15 years) |
| Pressure Characteristics |
0.13% of reading per mm Hg pressure |
| Calibration Interval |
Not required |
| Response Time |
Typically less than 3 minutes for 90% step change |
| Signal Update |
Updated every 5 seconds |
| Operating Conditions |
14°F to 140°F (-10°C to 60°C) 0-95% relative humidity, non-condensing
|
| Storage Conditions |
-22°F to 158°F (-30°C to 70°C) |
| Output |
Digital I2C slave up to 100 kHz |
| PWM output mode |
Two options: period of 1002 milliseconds (approximately 1 Hz) or period of 40 microseconds (25 kHz) |
| Power Requirements |
4.5-5.5 VDC |
| Interface Connection |
Designed for pin headers with 0.1 inch (2.54 mm) spacing. Pin headers are not included. |
