AMS high-precision temperature sensor humidity sensor - ENS210

AMS high-precision temperature sensor humidity sensorENS210 Description:

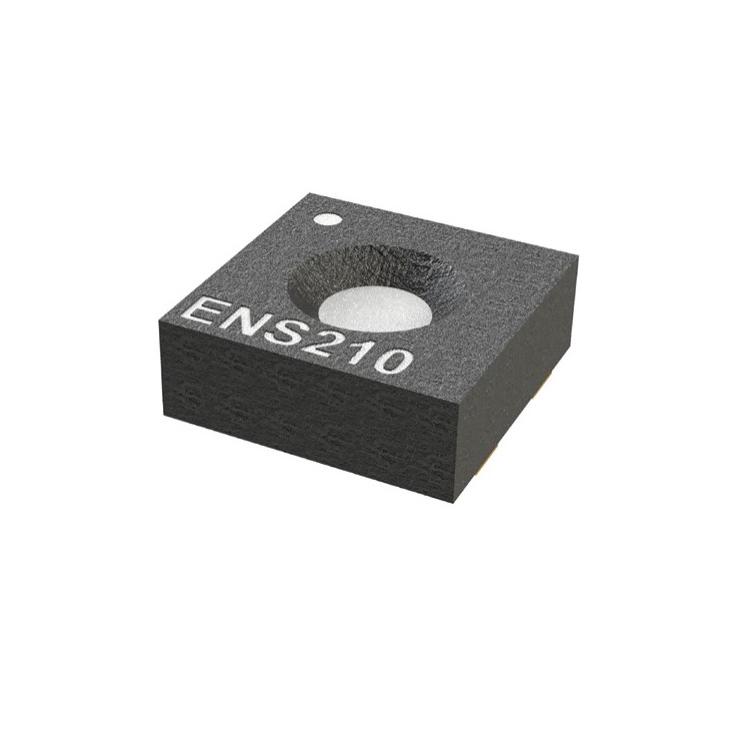

The ENS210 integrates a relative humidity sensor and a high-precision temperature sensor. The device is packaged in a QFN4 package and includes an I2C slave interface for communication with the host processor.



AMS high-precision temperature sensor humidity sensor ENS210 features:

• Ultra-high accuracy
• Temperature sensor (±0.2°C)
• Relative humidity sensor (±3.5%RH)
• Wide sensing range
• –40°C to 100°C operating temperature range
• 0% to 100% operating relative humidity range
• 1.71V to 3.60V operating voltage
• 2.0mm x 2.0mm x 0.75mm dimensions
• Industry-standard two-wire interface
• Standard (100kbit/s) and high-speed (400kbit/s) I2C
• Automatic low-power standby mode when not measuring
• 7.1μA active current at 1Hz (1.8V)
• 40nA standby current
• Digital pre-calibrated sensor
• Long-term stability

AMS high-precision temperature sensor humidity sensor ENS210Applications:

• Building automation / smart home / HVAC
• Indoor air quality detection
• Demand-controlled ventilation
• Smart thermostats
• Home appliances
• Air purifiers
• Refrigerators, washing machines, dishwashers, dryers
• Mobile phones / wearables
• IoT devices
• Portable devices for personal health
• Weather stations
