I. Description of AT3200 Antenna Training System

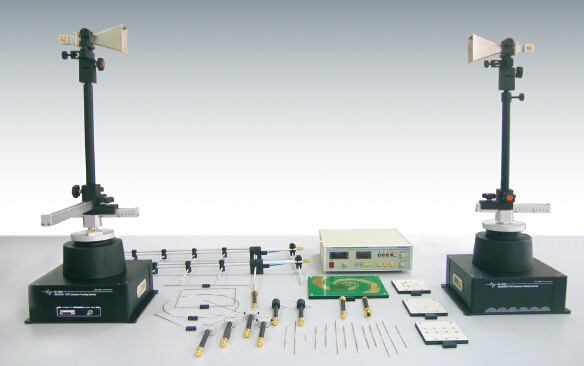

AT3200Antenna Training SystemIt consists of propagation modes and gain antennas, and is equipped with 10 different types of antennas. In the system, the RF source component provides a controller for antenna direction, as well as RF signals of 500MHz, 2GHz... 10GHz. Additionally, it has an interface for connecting to a PC for antenna characteristic software simulation.
This system is also equipped with an automatic control console, with angle steps settable to 1 degree, 5 degrees, or 10 degrees. It provides signals of 500MHz (adjustable bandwidth 300MHz), 2GHz (adjustable bandwidth 350MHz), and 10GHz, and the signals can be modulated by a 1kHz square wave and demodulated by a 1kHz square wave for level detection of power. It allows experimental measurement of time-domain and frequency-domain waveforms, antenna gain, lobes, and radiation patterns.
II. Features of AT3200 Antenna Training System
This system includes half-wave dipole antennas, symmetrical dipole antennas, Yagi antennas, array antennas, microstrip antennas (circular, rectangular), horn antennas, helical antennas, etc.
III. AT3200 Antenna Training System Experiment Projects
Experiment 1: Half-wave (λ/2) dipole antenna
Experiment 2: Folded dipole antenna
Experiment 3: λ/4 ground plane antenna
Experiment 4: Drooping antenna
Experiment 5: Full-wave loop antenna
Experiment 6: Yagi antenna
Experiment 7: Helical antenna
Experiment 8: Spiral antenna
Experiment 9: Horn antenna measurement
Experiment 10: Microstrip patch antenna
Experiment 11: Two-dimensional antenna array
Experiment 12: Circular antenna array
