Product Introduction

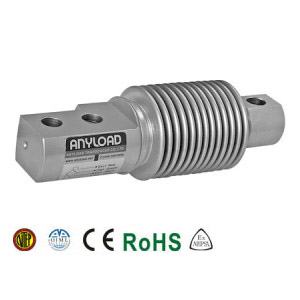

1. Canada Anyload Cantilever Beam Load Cell 563RSFeatures:
Certified to OIML MAA C6 class, Y=30,000
(capacities: 10kg-50kg) and OIML MAA C4 class, Y=30,000 certification
(capacities: 100kg-500kg)
NTEP 1:6,000 Class III, single cell (capacities: 5kg-50kg) and
NTEP 1:4,500 Class III, single cell (capacities: 100kg-500kg);
NTEP 1:10 000 Class III, multiple cell
Stainless steel hermetically sealed construction, protection class IP68
CE, RoHS, and Ex certifications obtained
Ukrainian Type Approval Obtained
Optional:
-Temperature resistant up to 120℃ [248℉]
-Six-wire system
2. Canada Anyload Cantilever Beam Load Cell 563RS Parameters:
| AccurateAccuracy class |
OIML |
- |
MAA C6, Y=30 000 |
MAA C4, Y=30 000 |
| Cert. No./ |
R60/2000-NL1-16.26/ |
|||
| NTEP |
1: 6 000 Class III, Single Cell & |
1: 4 500 Class III, Single Cell & |
||
| Cert. No./ |
17-011/ |
|||
| Maximum capacity |
kg |
5 |
10; 20; 50 |
100; 200; 350; 500 |
| Sensitivity |
mV/V |
2.0 ± 0.25% |
||
| Zero Output |
mV/V |
±0.02 |
||
| Maximum deflection value |
mm |
0.27 - 0.33 |
||
| Nonlinearity |
% |
< ±0.017 |
||
| Repeatability |
% |
< ±0.017 |
||
| Hysteresis Error |
% |
< ±0.017 |
||
| Creep |
% |
< ±0.023 |
||
| Input Impedance (Red (+)-Black (-)) |
Ω |
400 ± 20 |
||
| Output Impedance (Green (+)-White (-)) |
Ω |
350 ± 3 |
||
| Recommended Excitation Voltage |
V(DC/AC) |
0.5…10 |
||
| Maximum Allowable Excitation Voltage |
V(DC/AC) |
15 |
||
| Insulation Impedance |
GΩ |
>2［50 VDC］ |
||
| Normal Operating Temperature Range |
℃［℉］ |
-10…+50［14…+122］ |
||
| Safe Load Limit |
% of Cn |
150 |
||
| Ultimate Load Limit |
% of Cn |
300 |
||
| Sealing Method |
|
Hermetically Sealed |
||
| 防护等级 |
|
IP68 |
||
| Elastic Element Material |
|
17-4PH stainless steel |
||
