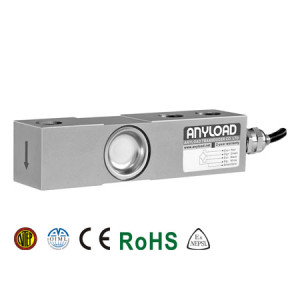

Canada Anyload Cantilever Beam Load Cell - 563YH

Low profile, high sensitivity
Protection class IP67
CE, RoHS, and Ex certified
Ukraine national type approval
Options:
- Blind hole mounting 563YHFM
- Through hole mounting 563YHT2
- Temperature resistance up to 120°C [248°F]
- Lightning and surge protection
- Six-wire configuration

Product Model: 563YH

Product Introduction

1. Canada Anyload Cantilever Beam Load Cell 563YHFeatures:

OIML MAA C6, Y=8,500
certification (capacities: 3t-10t & 10K-20Klb) and OIML MAA C4,
Y=15,000 certification (capacities: 500kg-2.5t & 1K-5Klb)
NTEP 1:5,000 Class III, single cell and NTEP 1:9,500
Class III, multiple cell (capacities: 250lb-2.5Klb & 200kg-1t);
NTEP 1:6,000 Class III, single cell and NTEP 1:10,000
Class III, multiple cell (capacities: 4Klb-20Klb & 2t-5t)
Low profile, high sensitivity
Protection class IP67
CE, RoHS, and Ex certified
Ukraine national type approval
Options:
- Blind hole mounting 563YHFM
- Through hole mounting 563YHT2
- Temperature resistance up to 120°C [248°F]
- Lightning and surge protection
- Six-wire configuration

2.Canada Anyload Cantilever Beam Load Cell 563YH Specifications:

Accuracy class	OIML	-		MAA C4, Y=15 000			MAA C6, Y=8 500		-
	Cert. No./ Laboratory			R60/2000-NL1-16.24/ NMi Certin B.V.
	NTEP	-	1:5 000 Class III, S & 1:9 500 Class III, M		-	1:6 000 Class III, S & 1:10 000 Class III, M		-
	Cert. No./ Laboratory		16-090/ NCWM			16-090/ NCWM
Maximum capacity	kg/lb	100/ 100	200;300/ 250;500	500;750;1t/ 1K;1.5K;2K;2.5K;LE2.5K	1.5t	2t;2.5t/ 4K;SE5K;5K	3t;5t/ 10K;15K;20K	10t	20t
Sensitivity	mV/V	3.0±0.25%
Zero output	mV/V	±0.02
Nonlinearity	%	<±0.017
Repeatability	%	<±0.017
Hysteresis	%	<±0.017
Creep	%	<±0.023
Input impedance [red(+)-black(-)]	Ω	kg: 400 ± 20; lb: 350 ± 7
Output impedance [green(+)-white(-)]	Ω	350 ± 3
Recommended excitation voltage	V(DC/AC)	0.5…10
Maximum allowable excitation voltage	V(DC/AC)	15
Insulation resistance	GΩ	>2［50 VDC］
Normal operating temperature range	℃［℉］	-10…+50［14…+122］
Safe overload	% of Cn	150
Ultimate overload	% of Cn	300
Sealing method		Epoxy sealing
Protection class		IP67
Spring element material		Alloy steel
