Product Introduction

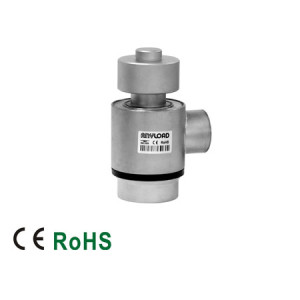

1. Canada Anyload Column Load Cell106AH Features:
- CE and RoHS certified
- Ukraine national type approval obtained
- Self-resetting pendulum type, easy installation
- High accuracy, meets Class III scale requirements
- High versatility
- Use in hazardous environments
- Top of form
- Bottom of form
2.Canada Anyload Column Load Cell106AH Parameters:
| Parameter | |
|
| Sensitivity |
mV/V |
1.5±0.25% |
| Zero Output |
mV/V |
±0.02 |
| Nonlinearity |
% |
< ±0.023 |
| Repeatability |
% |
< ±0.017 |
| Hysteresis Error |
% |
< ±0.017 |
| Creep |
% |
< ±0.023 |
| Input Impedance [Red(+)-Black(-)] |
Ω |
770 ± 30 |
| Output Impedance [Green(+)-White(-)] |
Ω |
700 ± 5 |
| Recommended Excitation Voltage |
V(DC/AC) |
0.5…10 |
| Maximum Allowable Excitation Voltage |
V(DC/AC) |
15 |
| Insulation Impedance |
GΩ |
>2［50 VDC］ |
| Normal Operating Temperature Range |
℃［℉］ |
-10…+50［14…+122］ |
| Safe Overload Capacity |
% of Cn |
150 |
| Ultimate Overload Capacity |
% of Cn |
300 |
| Sealing Method |
|
Welded Seal |
| Protection Rating (IEC529 Standard) |
|
IP67 |
| Elastic Element Material |
|
Alloy Steel |
