Product Introduction

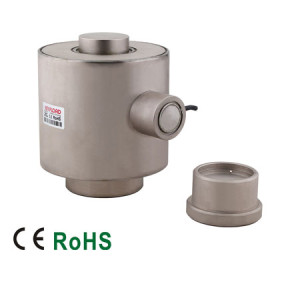

1. Canada Anyload Column Load Cell 106BH Features:
- High Precision
- Self-Resetting Pendulum Type, Easy Installation
- Protection Class IP67
- Use in Hazardous Environments
- CE and RoHS Certified
- Ukrainian Type Approval Obtained
- Optional:
Lightning and High Current Protection
For Increased Reliability, Optional Dual Bridge System
2. Canada Anyload Column Load Cell 106BHParameters:
| Sensitivity |
mV/V |
2.0±0.25% |
| Zero Output |
mV/V |
±0.02 |
| Nonlinearity |
% |
< ±0.050 |
| Repeatability |
% |
< ±0.017 |
| Hysteresis Error |
% |
< ±0.030 |
| Creep |
% |
< ±0.023 |
| Input Impedance (Red (+)-Black (-)) |
Ω |
770 ± 30 |
| Output Impedance (Green (+)-White (-)) |
Ω |
700 ± 5 |
| Recommended Excitation Voltage |
V(DC/AC) |
0.5…10 |
| Maximum Allowable Excitation Voltage |
V(DC/AC) |
15 |
| Insulation Impedance |
GΩ |
>2［50 VDC］ |
| Normal Operating Temperature Range |
℃［℉］ |
-10…+50［14…+122］ |
| Safe Load Limit |
% of Cn |
150 |
| Ultimate Load Limit |
% of Cn |
300 |
| Sealing Method |
|
Hermetically Sealed |
| Protection Class (IEC529 Standard) |
|
IP67 |
| Elastic Element Material |
|
Alloy Steel |
