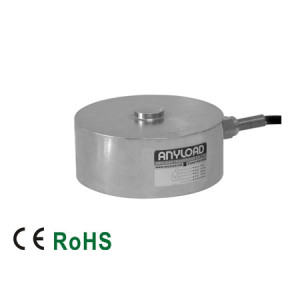

Canada Anyload Disc Load Cell - 266AA
Patented design
Compact low-profile structure
Small deflection, overall compact structure provides exceptional anti-interference capability
Suitable for impact applications and dynamic weighing
Use in Hazardous Environments
CE and RoHS Certified
Product Introduction
1. Canada Anyload Disc Load Cell 266AA Features:
- Patented design
- Compact low-profile structure
- Small deflection, overall compact structure provides exceptional anti-interference capability
- Suitable for impact applications and dynamic weighing
- Use in Hazardous Environments
- CE and RoHS Certified
2. Canada Anyload Disc Load Cell 266AAParameters:
| Sensitivity |
mV/V |
2.0±1% |
| Zero Output |
mV/V |
±0.02 |
| Nonlinearity |
% |
< ±0.2 |
| Repeatability |
% |
< ±0.03 |
| Hysteresis Error |
% |
< ±0.1 |
| Creep |
% |
< ±0.1 |
| Input Impedance (Red (+)-Black (-)) |
Ω |
400 ± 20 |
| Output Impedance (Green (+)-White (-)) |
Ω |
350 ± 3 |
| Recommended Excitation Voltage |
V(DC/AC) |
0.5…10 |
| Maximum Allowable Excitation Voltage |
V(DC/AC) |
15 |
| Insulation Impedance |
GΩ |
>2［50 VDC］ |
| Normal Operating Temperature Range |
℃［℉］ |
-10…+50［14…+122］ |
| Safe Load Limit |
% of Cn |
150 |
| Ultimate Load Limit |
% of Cn |
300 |
| Sealing Method |
|
Gel sealing |
| 防护等级 |
|
IP66 |
| Elastic Element Material |
|
Aluminum alloy |
