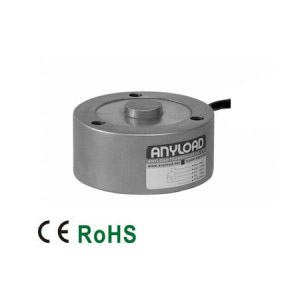

Canada Anyload Pancake Load Cell - 276EH
Patented Design
Sensor and accessories made of alloy steel
Compact and low profile structure
Small deflection, overall compact structure provides exceptional anti-interference capability
Suitable for impact applications and dynamic weighing
Protection class IP67
For use in hazardous environments
Product Introduction
I. Canada Anyload Pancake Load Cell 276EHFeatures:
- Patented design
- Sensor and accessories made of alloy steel
- Compact and low profile structure
- Small deflection, overall compact structure provides exceptional anti-interference capability
- Suitable for impact applications and dynamic weighing
- Protection class IP67
- For use in hazardous environments
- Includes mounting hardware
- Options:
- Six-wire system
- Stainless steel 276ES
II.Canada Anyload Pancake Load Cell 276EHParameters:
| Maximum capacity |
t |
5; 10; 25; 50 |
100 |
| Sensitivity |
mV/V |
2.5±10% |
|
| Zero output |
mV/V |
±0.02 |
|
| Nonlinearity |
% |
< ±0.32 |
< ±1 |
| Repeatability |
% |
< ±0.05 |
< ±0.2 |
| Hysteresis error |
% |
< ±0.32 |
< ±2 |
| Creep |
% |
< ±0.10 |
< ±0.1 |
| Input impedance [Red (+)-Black (-)] |
Ω |
400±20 |
|
| Output impedance [Green (+)-White (-)] |
Ω |
350±3 |
|
| Recommended excitation voltage |
V(DC/AC) |
0.5…10 |
|
| Maximum allowable excitation voltage |
V(DC/AC) |
15 |
|
| Insulation impedance |
GΩ |
>2［50 VDC］ |
|
| Normal operating temperature range |
℃［℉］ |
-10…+50［14…+122］ |
|
| Safe overload limit |
% of Cn |
150 |
|
| Ultimate overload limit |
% of Cn |
300 |
|
| Sealing method |
|
Glue sealing |
|
| Protection class |
|
IP67 |
|
| Elastic element material |
|
Alloy steel |
|
