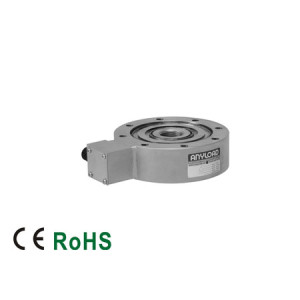

Canada Anyload Disc Load Cell - 363YH
Complies with the International Organization of Legal Metrology (OIML) R60 recommendation, meeting
the requirements for 1000-division electronic scales
Low profile, for both tension and compression
Small deflection, compact structure, strong anti-interference capability
Suitable for impact applications and dynamic weighing
Protection class IP67
For use in hazardous environments
CE and RoHS certified
Product Introduction
I. Features of Canada Anyload Disc Load Cell 363YH:
Complies with the International Organization of Legal Metrology (OIML) R60 recommendation, meeting
Requirements for 1000-division electronic scales
Low profile, for both tension and compression
Small deflection, compact structure, strong anti-interference capability
Suitable for impact applications and dynamic weighing
Protection class IP67
For use in hazardous environments
CE and RoHS certified
Options:
- Six-wire system
- Temperature resistance up to 120°C [248°F]
- Lightning and high current protection
II. Canada Anyload Disc Load Cell 363YHParameters:
| Maximum Capacity |
t |
1; 2; 3; 5 |
10; 20; 30; 50; 100; 150; 200; 300 |
| Sensitivity |
mV/V |
2.0 ± 1% |
|
| Zero Output |
mV/V |
± 0.02 |
|
| Nonlinearity |
% |
< ±0.050 |
< ±0.30 |
| Repeatability |
% |
< ±0.030 |
< ±0.20 |
| Hysteresis Error |
% |
< ±0.050 |
< ±0.30 |
| Creep |
% |
< ±0.050 |
< ±0.10 |
| Input Impedance [Red(+)-Black(-)] |
Ω |
770 ± 30 |
|
| Output Impedance [Green(+)-White(-)] |
Ω |
700 ± 5 |
|
| Recommended Excitation Voltage |
V(DC/AC) |
0.5…10 |
|
| Maximum Allowable Excitation Voltage |
V(DC/AC) |
15 |
|
| Insulation Impedance |
GΩ |
>2［50 VDC］ |
|
| Normal Operating Temperature Range |
℃［℉］ |
-10…+50［14…+122］ |
|
| Safe Overload Limit |
% of Cn |
150 |
|
| Ultimate Overload Limit |
% of Cn |
300 |
|
| Sealing Method |
|
Welded seal |
|
| Protection Class (IEC 529 Standard) |
|
IP67 |
|
| Elastic Element Material |
|
Alloy steel |
|
