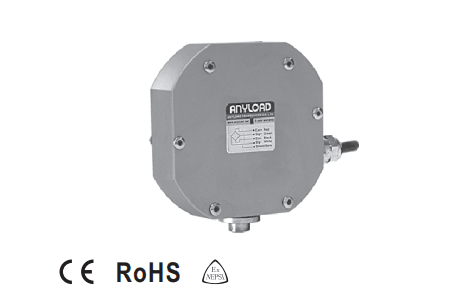

Canada Anyload S-Type Load Cell - 101AH
High precision, meets Class III scale requirements
Tension and compression dual-use
Protection class IP65
Overload protection for both tension and compression
CE, RoHS, and Ex certified
Ukraine national type approval
Options:
-Temperature resistance up to 120°C [248°F]
-Lightning and high current protection
-Six-wire system
Product Introduction
High precision, meets Class III scale requirements
Tension and compression dual-use
Protection class IP65
Overload protection for both tension and compression
CE, RoHS, and Ex certified
Ukraine national type approval
Options:
-Temperature resistance up to 120°C [248°F]
-Lightning and high current protection
-Six-wire system
II. Canada Anyload S-Type Load Cell101AHParameters:
| Sensitivity |
mV/V |
2.0 ± 10% |
| Zero Output |
mV/V |
± 0.02 |
| Nonlinearity |
% |
< ±0.017 |
| Repeatability |
% |
< ±0.017 |
| Hysteresis Error |
% |
< ±0.017 |
| Creep |
% |
< ±0.023 |
| Input Impedance [Red(+)-Black(-)] |
Ω |
400 ± 20 |
| Output Impedance [Green(+)-White(-)] |
Ω |
350 ± 3 |
| Recommended Excitation Voltage |
V(DC/AC) |
0.5…10 |
| Maximum Allowable Excitation Voltage |
V(DC/AC) |
15 |
| Insulation Impedance |
GΩ |
>2［50 VDC］ |
| Normal Operating Temperature Range |
℃［℉］ |
-10…+50［14…+122］ |
| Safe Overload Limit |
% of Cn |
150 |
| Ultimate Overload Limit |
% of Cn |
300 |
| Sealing Method |
|
Glue Sealing |
| Protection Class (IEC 529 Standard) |
|
IP65 |
| Elastic Element Material |
|
Alloy Steel |
