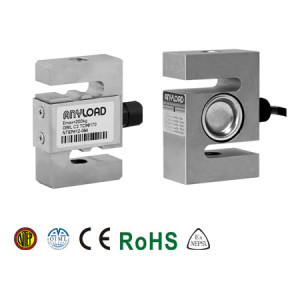

Canada Anyload S-Type Load Cell - 101BH

Tension and Compression
Protection Class IP67
High Versatility
CE, RoHS, and Ex Certified
Ukraine National Type Approval
Options:
- Temperature resistance up to 120°C [248°F]
- Six-wire configuration
- Stainless steel 101BSGS
Top of Form
Bottom of Form

Model: 101BH

Product Introduction

1. Canada Anyload S-Type Load Cell101BH Features:

OIML MAA C3 certified, Y=17,000 (capacity:
200kg...1.5t) and MAA C4.5 certified, Y=14,000 (capacity: 2t...10t), NTEP
1:4,500 Class III, single cell (capacity: 100lb...500lb) and NTEP 1:5,500
Class III, single cell (capacity: 1Klb...20Klb)
Tension and compression
Protection class IP67
High versatility
CE, RoHS, and Ex Certified
Ukraine National Type Approval
Options:
- Temperature resistance up to 120°C [248°F]
- Six-wire configuration
- Stainless steel 101BSGS

Top of Form

Bottom of Form

2. Canada Anyload S-Type Load Cell 101BH Specifications:

Accuracy Class	OIML	-	MAA C3, Y=17 000			MAA C4.5, Y=14 000
	Cert. No./ Laboratory		R60/2000-NL1-12.33 NMi Certin B.V.
	NTEP	1:4500 Class III, S		-	1:5500 Class III, S		-
	Cert. No./ Laboratory	12-094A1/ NCWM			12-094A1/ NCWM
Maximum Capacity	kg/t	50kg;100kg	200kg	300kg	500kg;1t	SE2t;2t;3t;5t	10t
Sensitivity	mV/V	2.0 ± 1%
Zero Output	mV/V	± 0.02
Nonlinearity	%	< ±0.017
Repeatability	%	< ±0.017
Hysteresis	%	< ±0.017
Creep	%	< ±0.023
Input Impedance (Red(+)-Black(-))	Ω	400 ± 25
Output Impedance (Green(+)-White(-))	Ω	350 ± 3
Recommended Excitation Voltage	V(DC/AC)	0.5…10
Maximum Allowable Excitation Voltage	V(DC/AC)	15
Insulation Resistance	GΩ	>2［50 VDC］
Normal Operating Temperature Range	℃［℉］	-10…+50［14…+122］
Safe Overload	% of Cn	150
Ultimate Overload	% of Cn	300
Sealing Method		Glue Sealing
Protection Class		IP67
Elastic Element Material		Alloy Steel
