Product Introduction

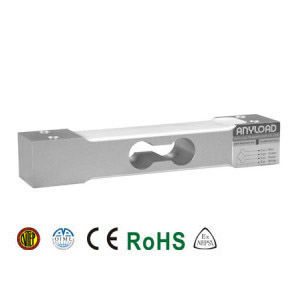

1. Canada Anyload Single Point Load Cell108BAFeatures:
- Certified to OIML MAA C5, Y=12,300
(Capacity 6kg-40kg)
- NTEP 1:5 000 Class III, Single Cell
- Corner correction
- Protection class IP66
- Options:
- Cable length 1 meter
2.Canada Anyload Single Point Load Cell108BA Parameters:
| Accuracy class |
OIML |
- |
MAA C4, Y=15 000 |
MAA C5, Y=12 300 |
|
|
Cert. No./ |
|
R60/2000-NL1-16.11/ |
|
|
|
NTEP |
1:5 000 Class III, Single Cell |
||
|
|
Cert. No./ |
|
||
| Related capacity |
kg |
3 |
6; 7; 10; 15; 20; 30; 35; 40 |
50; 60; 75; 100; 150 |
| Sensitivity |
mV/V |
2.0 ± 10% |
||
| Zero output |
mV/V |
±0.02 |
||
| Recommended maximum platform size |
mm |
400×400 |
||
| Nonlinearity |
% |
< ±0.017 |
||
| Repeatability |
% |
< ±0.017 |
||
| Hysteresis error |
% |
< ±0.017 |
||
| Creep |
% |
< ±0.023 |
||
| Input impedance (Red(+)-Black(-)〕 |
Ω |
415 ± 15 |
||
| Output impedance (Green(+)-White(-)〕 |
Ω |
350 ± 3 |
||
| Recommended excitation voltage |
V(DC/AC) |
0.5…10 |
||
| Maximum allowable excitation voltage |
V(DC/AC) |
15 |
||
| Insulation impedance |
GΩ |
>2［50 VDC ］ |
||
| Normal operating temperature range |
℃［℉］ |
-10…+40［14…+104］ |
||
| Safe overload limit |
% of Cn |
150 |
||
| Ultimate overload limit |
% of Cn |
300 |
||
| Sealing method |
|
Gel sealing |
||
| Protection class |
|
IP66 |
||
| Elastic element material |
|
Aluminum alloy |
||
