Product Introduction

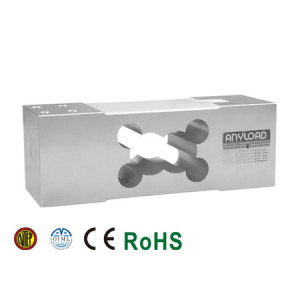

I. Canada Anyload Single Point Load Cell108CA Features:
- Certified to OIML MAA C5, Y=12 300
- (Capacity 60kg-500kg) and OIML MAA C4, Y=15 000
- (Capacity 10kg-30kg) and OIML MAA C4, Y=4 000
- (Capacity 600kg-1t)
- NTEP 1:5 000 Class III, Single Cell (Capacity 10kg-500kg)
- NTEP 1:4 000 Class III, Single Cell (Capacity 650kg-1t)
- Corner correction
- Protection class IP66
- Alloy steel material108CHOptional
II.Canada Anyload Single Point Load Cell 108CA Parameters:
| Accuracy class |
OIML |
MAA C4, Y=15 000 |
MAA C5, Y=12 300 |
MAA C4, Y=4 000 |
| Cert. No./ |
R60/2000-NL1-16.11/ |
|||
| NTEP |
1:5 000 Class III, S |
1:4 000 Class III, S |
||
| Cert. No./ |
12-036A1/ |
|||
| Related capacity |
kg/t |
10kg; 20kg; 30kg |
60kg; 100kg; 150kg; 200kg; 250kg; 300kg; 500kg |
600kg; 750kg; 1t |
| Sensitivity |
mV/V |
2.0 ± 10% |
||
| Zero output |
mV/V |
±0.02 |
||
| Recommended maximum platform size |
mm |
600×700 |
||
| Nonlinearity |
% |
< ±0.017 |
||
| Repeatability |
% |
< ±0.017 |
||
| Hysteresis error |
% |
< ±0.017 |
||
| Creep |
% |
< ±0.023 |
||
| Input impedance (Red(+)-Black(-)) |
Ω |
415 ± 15 |
||
| Output impedance (Green(+)-White(-)) |
Ω |
350 ± 3 |
||
| Recommended excitation voltage |
V(DC/AC) |
0.5…10 |
||
| Maximum allowable excitation voltage |
V(DC/AC) |
15 |
||
| Insulation resistance |
GΩ |
>2［50 VDC］ |
||
| Normal operating temperature range |
℃［℉］ |
-10…+40［14…+104］ |
||
| Safe overload limit |
% of Cn |
150 |
||
| Ultimate overload limit |
% of Cn |
300 |
||
| Sealing method |
|
Glue sealing |
||
| Protection class |
|
IP66 |
||
| Elastic element material |
|
Aluminum alloy |
||
