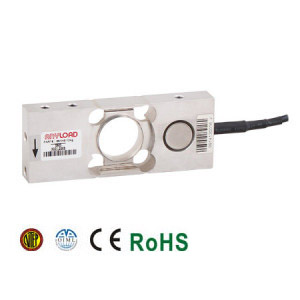

Canada Anyload Single Point Load Cell - 651HS
Certified by OIML MAA C9, Y=18,000 and
US NTEP 1:10,000 Class III, Single Cell
High precision, meets Class III scale requirements
Corner error correction
Stainless steel welded seal construction
Suitable for harsh environments or food industry
Protection class IP68/IP69K
Product Introduction
I. Canada Anyload Single Point Load Cell651HSFeatures:
Certified by OIML MAA C9, Y=18,000 and
US NTEP 1:10,000 Class III, Single Cell
High precision, meets Class III scale requirements
Corner error correction
Stainless steel welded seal construction
Suitable for harsh environments or food industry
Protection class IP68/IP69K
II. Canada Anyload Single Point Load Cell 651HS Parameters:
| Accuracy Class |
OIML |
- |
MAA C9, Y=18 000 |
| Cert. No./ |
R60/2000-NL1-15.07/ |
||
| NTEP |
1:10 000 Class III, S |
||
| Cert. No./ |
15-094/ |
||
| Rated Capacity |
kg |
6 |
12; 20; 30; 50; 60 |
| Sensitivity |
mV/V |
2.0 ± 1% |
|
| Zero Output |
mV/V |
±0.02 |
|
| Recommended Maximum Platform Size |
mm |
350×350 |
|
| Nonlinearity |
% |
< ±0.030 |
|
| Repeatability |
% |
< ±0.020 |
|
| Hysteresis Error |
% |
< ±0.030 |
|
| Creep |
% |
< ±0.030 |
|
| Input Impedance (Red(+)-Black(-)) |
Ω |
385 ± 15 |
|
| Output Impedance (Green(+)-White(-)) |
Ω |
350 ± 3 |
|
| Recommended Excitation Voltage |
V(DC/AC) |
0.5…10 |
|
| Maximum Allowable Excitation Voltage |
V(DC/AC) |
15 |
|
| Insulation Impedance |
GΩ |
>2［50 VDC］ |
|
| Normal Operating Temperature Range |
℃［℉］ |
-10…+50［14…+122］ |
|
| Safe Overload Limit |
% of Cn |
150 |
|
| Ultimate Overload Limit |
% of Cn |
300 |
|
| Sealing Method |
|
Welded Seal |
|
| Protection Class |
|
IP68/IP69K |
|
| Elastic Element Material |
|
17-4PH Stainless Steel |
|
