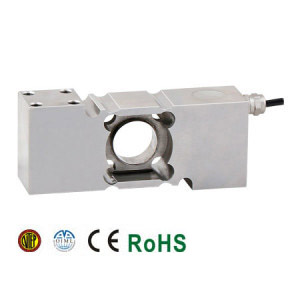

Canada Anyload Single Point Load Cell - 651KS22
High precision, meets Class III scale requirements
Corner correction
Stainless steel welded sealed structure
Suitable for harsh environments or food industry
Protection rating IP68/IP69K
Options:
-Temperature resistant up to 120°C [248°F]
-Metric and imperial threads available
Product Introduction
I. Canada Anyload Single Point Load Cell 651KS22Features:
Certified to OIML MAA C9, Y=18,000
(Capacity 50kg-100kg) and OIML MAA C4, Y=26,000
(Capacity 250kg-500kg)
NTEP 1:10,000 Class III, Single Cell (Capacity 50kg)
NTEP 1:5,000 Class III, Single Cell (Capacity 100kg-500kg)
High precision, meets Class III scale requirements
Corner correction
Stainless steel welded sealed structure
Suitable for harsh environments or food industry
Protection rating IP68/IP69K
Options:
-Temperature resistant up to 120°C [248°F]
-Metric and imperial threads available
II. Canada Anyload Single Point Load Cell 651KS22Parameters:
| Accuracy Class |
OIML |
MAA C9, Y=18 000 |
MAA C4, Y=26 000 |
|
| Cert. No./ |
R60/2000-NL1-15.07/ |
|||
| NTEP |
1:10 000 Class III, S |
1:5 000 Class III, S |
||
| Cert. No./ |
15-094/ |
|||
| Related Capacity |
kg |
50 |
100 |
250; 500 |
| Sensitivity |
mV/V |
2.0 ± 10% |
||
| Zero Output |
mV/V |
±0.02 |
||
| Recommended Maximum Platform Size |
mm |
600×600 |
||
| Nonlinearity |
% |
< ±0.030 |
||
| Repeatability |
% |
< ±0.020 |
||
| Hysteresis Error |
% |
< ±0.030 |
||
| Creep |
% |
< ±0.030 |
||
| Input Impedance (Red(+)-Black(-)) |
Ω |
385 ± 15 |
||
| Output Impedance (Green(+)-White(-)) |
Ω |
350 ± 3 |
||
| Recommended Excitation Voltage |
V(DC/AC) |
0.5…10 |
||
| Maximum Allowable Excitation Voltage |
V(DC/AC) |
15 |
||
| Insulation Resistance |
GΩ |
>2［50 VDC］ |
||
| Normal Operating Temperature Range |
℃［℉］ |
-10…+50［14…+122］ |
||
| Safe Overload Limit |
% of Cn |
150 |
||
| Ultimate Overload Limit |
% of Cn |
300 |
||
| Sealing Method |
|
Welded Sealed |
||
| Protection Rating |
|
IP68/IP69K |
||
| Elastic Element Material |
|
17-4PH Stainless Steel |
||
