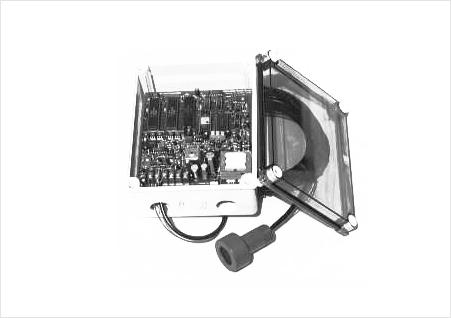

US Automated Liquid Level Sensor - UL-100
Range = Tank Height: UL-100... 0-4.5 meters, UL-200... 0-15 meters
Output: 8-digit LCD level reading, standard 4-20mA into 600 ohms, standard 1-5 VDC or 2-10 VDC output, RS232C, up to 610 meters distance
Accuracy: 0.25% of range
Repeatability: 0.15% of range
Resolution: 0.0006 meters
Power: 115VAC +/- 15%, 50/60Hz, 5 VA, std. 220VAC +/- 10% 50/60Hz, opt. + 12 ~ + 24 VDC, 0.2 Amp., opt.
Enclosure: NEMA 4X polycarbonate, IP65, 18 x 23 x 10cm, std.
Product Introduction
1. UL-100 Liquid Level Sensor Product Description:
Continuously monitors the liquid level in a tank and outputs a proportional 4-20mA current. Monitoring does not require contact with the liquid. The current output can be connected to a programmable controller, computer, remote display, or relay module. It displays the liquid level in the tank.
2. UL-100 Liquid Level Sensor Product Features
Non-contact sensing
No calibration required
Maintenance-free, easy to install
Rugged, air and water tight, explosion-proof transducer
Unaffected by condensation
Automatic temperature compensation
Displays tank level
Self-test
3. UL-100 Liquid Level Sensor Applications:
Chemicals, acids, caustics, oils, fuels, gasoline, lubricants, adhesives, creams, lotions, viscous fluids, pharmaceuticals, food, beverages, open channel flow meters, flow computers
4. UL-100 Liquid Level Sensor Product Specifications:
Range = Tank Height: UL-100... 0-4.5 meters, UL-200... 0-15 meters
Output: 8-digit LCD level reading, standard 4-20mA into 600 ohms, standard 1-5 VDC or 2-10 VDC output, RS232C, up to 610 meters distance
Accuracy: 0.25% of range
Repeatability: 0.15% of range
Resolution: 0.0006 meters
Power: 115VAC +/- 15%, 50/60Hz, 5 VA, std. 220VAC +/- 10% 50/60Hz, opt. + 12 ~ + 24 VDC, 0.2 Amp., opt.
Enclosure: NEMA 4X polycarbonate, IP65, 18 x 23 x 10cm, std.
