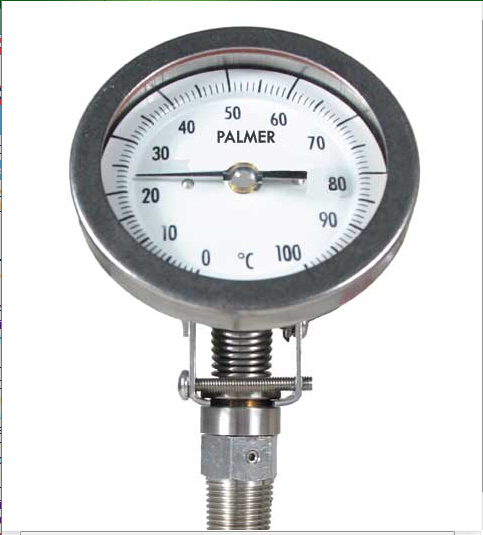

Axial Bimetallic Thermometer - 5AU Series
Dial diameter: 5 inches (127mm)
Stem length: multiple options from 63.5 to 610mm
Measurement range: multiple options from -50 to 500°C, suitable for measuring temperature of liquids, gases, and solid surfaces
Probe withstands pressure up to 3000 PSI
Easy to disassemble and install
Various options for housing material, thread connection, etc., customized for customers
Product Introduction
Product Description:
Universal mounting bimetallic thermometer5AUThe internal temperature sensing element connects the dial and housing, allowing easy disassembly and installation without affecting calibration; the dial orientation is independent of the threaded stem, enhancing readability; thermowell can be removed in low wind speed or non-corrosive environments; can be installed in confined spaces; align the dial and housing with the calibration nut.
Features:
Dial diameter:5inches (127mm）
Stem length:63.5～610mmmultiple options
Measurement range:-50～500°C multiple options, suitable for measuring temperature of liquids, gases, and solid surfaces
Probe withstands pressure3000PSI
Easy to disassemble and install
Various options for housing material, thread connection, etc., customized for customers
Applications:
Widely used in petroleum, chemical,metallurgy, textile, food and other industries
