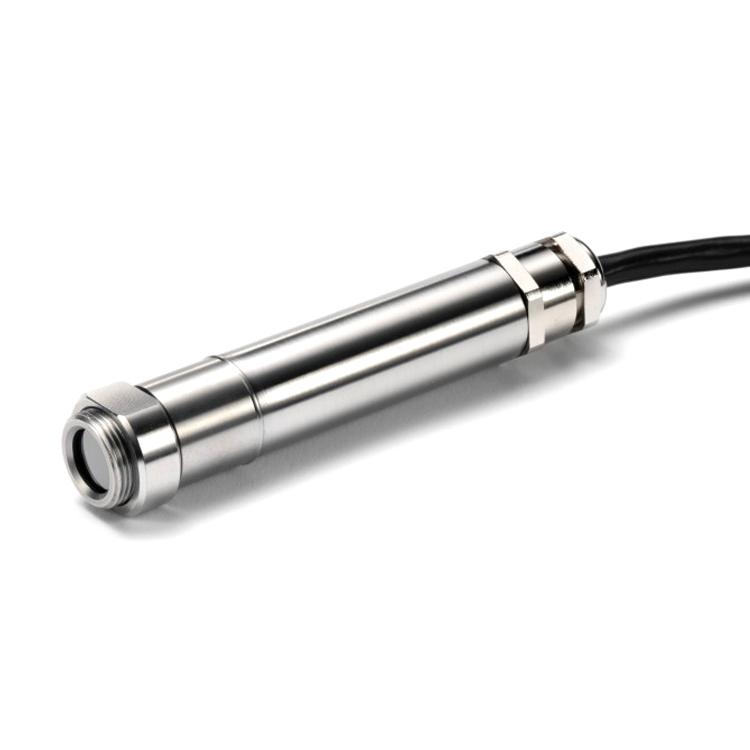

UK Calex Electronics Ltd Infrared Temperature Sensor PyroBus PyroCAN - PyroCouple PyroEpsilon

1. UK Calex Electronics LtdInfrared Temperature Sensor PyroCouple,PyroEpsilon,PyroBus,PyroCANDescription:

PyroCouple is a compact infrared temperature sensor with optional analog output. No complex setup; simply connect to a temperature indicator and power supply, and start measuring immediately.

Temperature measurement range: -20°C ~ 500°C

• Suitable for non-contact temperature measurement on most non-reflective non-metallic surfaces, such as paper, thick plastic, asphalt, painted surfaces, food, rubber, and organic materials.

• Analog output options for temperature measurement: two-wire 4-20 mA, four-wire 0-50 mV, four-wire K, J, or T thermocouple types.

• Additional sensor body temperature output on four-wire models: indicates the air temperature around the sensor, helping to prevent overheating or overcooling.

PyroEpsilon is a compact sensor with adjustable emissivity setting. It is suitable for partially reflective targets.

Temperature measurement range: 20°C ~ 500°C

• Two-wire 4-20 mA output

• Emissivity adjustable via a separate two-wire 4-20 mA output.

• Continuously adjust emissivity in process using a variable 4-20 mA supply

• Manually set emissivity with the PyroTune emissivity adjuster

• If unsure about the target's emissivity, choose PyroEpsilon instead of PyroCouple.

PyroBus is a networkable, fully configurable sensor using RS485 Modbus RTU communication.

• Temperature measurement range: 20°C ~ 500°C

• Up to 247 sensors can be connected on a single network.

• Adjustable emissivity setting, suitable for various materials

• Averaging function smooths temperature output

• Peak and valley hold processing for objects on a conveyor belt

• Reflected energy compensation for accurate measurement of objects in ovens or coolers from outside

• Optional 6-channel touchscreen terminal for local display, configuration, and data logging

• Connect sensors and 6-channel terminal directly to existing RS485 Modbus systems

PyroCAN is a sensor with CAN communication.

• Temperature measurement range: 20°C ~ 1000°C

• Raw CAN communication

• Adjustable emissivity setting for measuring various materials

• Suitable for vehicle temperature monitoring and other applications.

• Compliant with EMC standard EN13309:2010

Output (PyroCouple) Parameters:

PyroCouple Output Options (see model)	Target temperature output	Sensor temperature output -0
-0	4-20 mA	Not available -1
-1	0-50 mV	4-20 mA
-2	Type T thermocouple	4-20 mA
-3	Type J thermocouple	4-20 mA
-4	Type K thermocouple	4-20 mA
-5	0-50 mV (very low current consumption: 3.2 mA)	Not available

2. UK Calex Electronics Ltd Infrared Temperature SensorPyroCouple,PyroEpsilon,PyroBus, PyroCANProduct Parameters:

Parameter	PyroCouple	PyroEpsilon	PyroBus	PyroCAN
Output	See table above	Two-wire 4-20 mA	RS485ModbusRTU	Raw CAN
Temperature range	LT = -20 ~ +100 °C MT = 0 ~ 250 °C HT = 0 ~ 500 °C		-20 ~ 500°C	-20°C~1000°C
Accuracy	±1% of reading or ±1°C, whichever is greater.
Repeatability	±0.5% of reading or ±0.5°C, whichever is greater
Spectral range	8 ~ 14 μm
Response time	240 ms (90% response)		200 ms (90% response)
Supply voltage	24 V DC (28 V DC max.)		12 V DC (13 V DC max.)	24 V DC (28 V DC max)

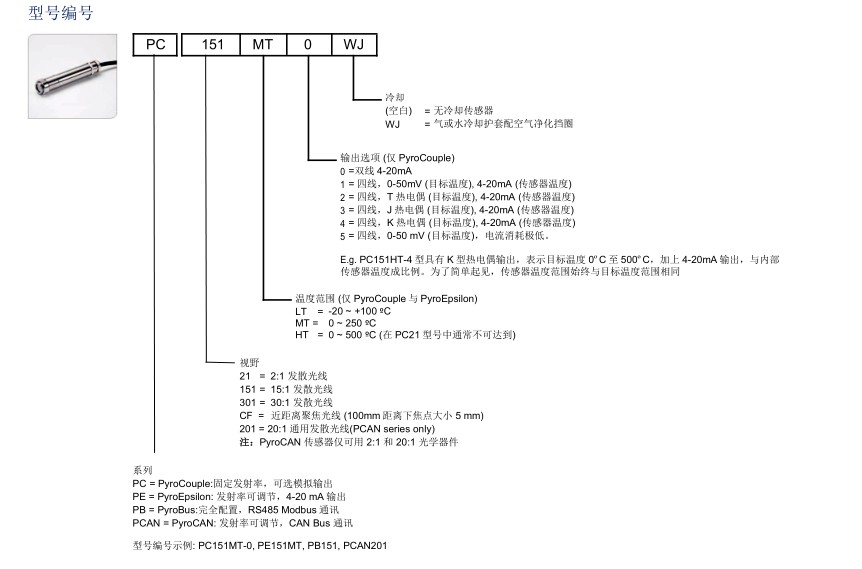

3. UK Calex Electronics Ltd Infrared Temperature SensorPyroCouple,PyroEpsilon,PyroBus, PyroCANProduct Selection:
