Product Introduction
I. Carbon monoxide (CO) gas sensor MICROceL CF features:
Powerful carbon monoxide sensor suitable for portable life safety applications
Small size
II.Carbon monoxide (CO) gas sensor MICROceL CF product parameters:
| Measurement |
|
| Working principle |
Three-electrode electrochemical |
| Measurement Range |
0-500 ppm CO |
| Overload |
1500 ppm CO |
| Filter |
Reduce TLV levels of interfering gases |
| Sensitivity |
0.045 ± 0.01 μA/ppm |
| T50 response time |
<10 seconds at 20°C |
| Typical T90 response time |
15-20 seconds |
| Baseline offset (clean air) |
-4~+2 ppm CO equivalent |
| Zero offset (+20°C~ +40°C) |
2 ppm CO equivalent |
| Linear |
Linear up to 1500 ppm CO |
| Electrical |
|
| Recommended load impedance |
10Ω |
| Bias |
None required |
| Mechanical |
|
| Weight |
1.2g |
| Housing material |
ABS |
| Orientation |
Any |
| Environmental |
|
| Operating temperature range |
-40~+50℃ |
| Recommended storage temperature |
0~20℃ |
| Operating pressure range |
Atmospheric pressure ± 10% |
| Operating humidity range |
15 - 90% RH non-condensing |
| Lifespan |
|
| Expected operating life |
2 years in air |
| Long-term output drift |
<5% signal loss per year |
| Storage life |
6 months storage in CTL container |

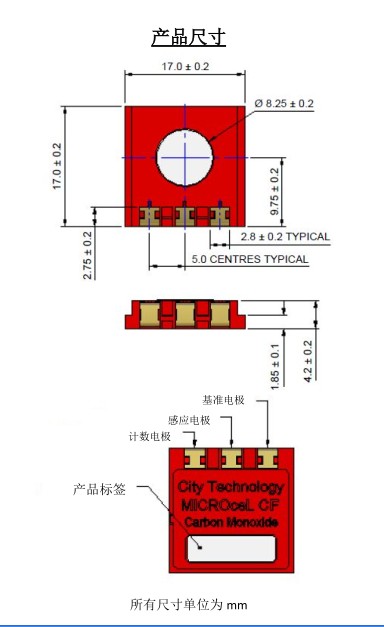

III. Carbon monoxide (CO) gas sensor MICROceL CF dimensions:
IV. Carbon monoxide (CO) gas sensor MICROceL CF product datasheet:
Toxicity
CiTiceLs are designed to operate in a variety of environments and harsh conditions. However, avoid exposure to high concentrations of solvents during storage, installation into instruments, and operation.in solvent vapor, this is important.
When using the sensor on a printed circuit board (PCB), a degreasing agent should be used before installing the sensor. Do not stick directly on or near CiTiceL, asSolvents may cause plastic cracking.
Cross-sensitivity table
Although CiTiceLs are designed to be highly specific to the intended measured gas, they will still respond to some extent to various other gases. BelowThe table is not exclusive, and other gases not included in the table may still cause the sensor to react.
Important note: The cross-sensitivity data shown below does not constitute part of the product specification and is for reference only. The cited values areBased on tests on a small number of sensors, any batch may show significant differences. For the most accurate measurementAs a result, the instrument should be calibrated using the gas being detected.
| Gas |
Use concentration (ppm) |
MICROceL CF (ppm CO) |
| Hydrogen sulfide, H2S |
15 |
< 0.5 |
| Sulfur dioxide, SO2 |
5 |
± 0.1 |
| Nitric oxide, NO |
35 |
<6 |
| Nitrogen dioxide, NO2 |
20 |
± 1 |
| Hydrogen, H2 |
100 |
< 40 |
| Ethanol, C2H5OH |
200 |
± 1 |
