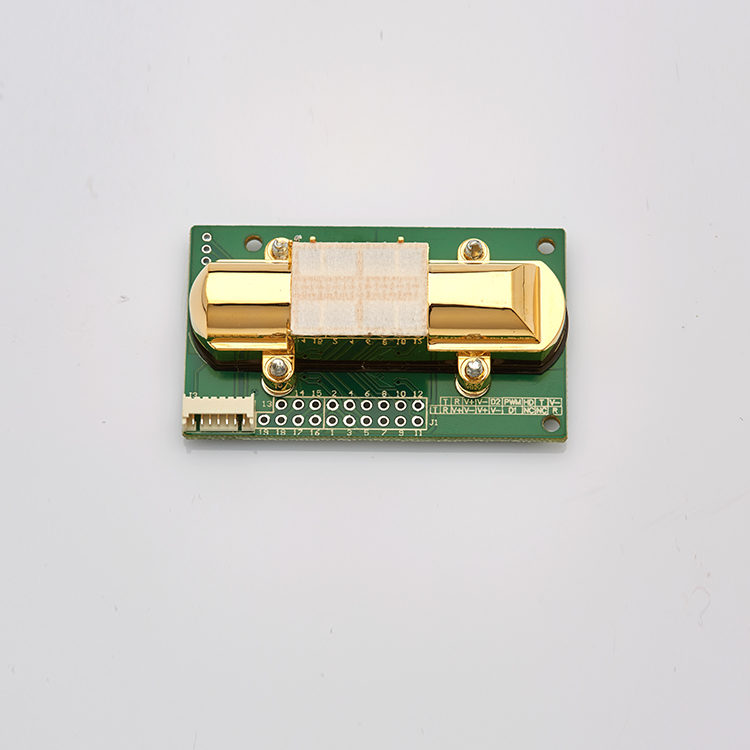

Carbon Dioxide Gas Sensor CO2 Sensor - MH-Z14A

Carbon Dioxide Gas Sensor CO2 SensorMH-Z14A Description:

The MH-Z14A carbon dioxide gas sensor (hereinafter referred to as the sensor) is a general-purpose intelligent small sensor that uses non-dispersive infrared (NDIR) principle to detect CO2 in the air. It has good selectivity, no oxygen dependence, and long lifespan. Built-in temperature compensation; also provides digital output, analog output, and PWM output for easy use. This sensor is a high-performance sensor created by combining mature infrared absorption gas detection technology with precision optical path design and sophisticated circuit design.

Carbon Dioxide Gas Sensor CO2 Sensor MH-Z14A Features:

Gold-plated gas chamber for waterproof and anti-corrosion

High sensitivity, low power consumption

Excellent stability

Temperature compensation, excellent linear output

Provides serial port (UART), analog (DAC), PWM waveform output modes

Long service life

Resistant to water vapor interference, non-poisoning

Carbon Dioxide Gas Sensor CO2 Sensor MH-Z14A Applications:

HVAC and refrigeration equipment

Air quality monitoring equipment

Smart home

Fresh air systems

Air purification equipment

Schools

Carbon Dioxide Gas Sensor CO2 Sensor MH-Z14A Parameters:

Product Model	MH-Z14A Carbon Dioxide Sensor
Detection Gas	Carbon Dioxide
Supply Voltage	4.5～5.5 V DC
Average Current	<60mA (@5V supply)
Peak Current	150 mA (@5V supply)
Interface Level	3.3V (compatible with 5V)
Measurement Range	Selectable within 0~10000ppm
Output Signal	Serial port (UART) (TTL level)
	PWM
	Analog output (DAC) (0.4~2V) (0~2.5V)
Preheating Time	3 min
Response Time	T90＜120 s
Operating Temperature	-10 ℃～50 ℃
Operating Humidity	0～95% RH (non-condensing)
Weight	15 g
Lifespan	> 5 years
