184. Russia comeco Temperature and Humidity Sensor Thin-Film Humidity Sensing Element - SH
185. Low Cost
186. Wide T/RH Operating Range
187. Operating Temperature up to 200°C
188. Excellent Sensitivity
192. Product Introduction
193. 1. Russia comeco Temperature and Humidity Sensor Thin-Film Humidity Sensing Element SH Description:

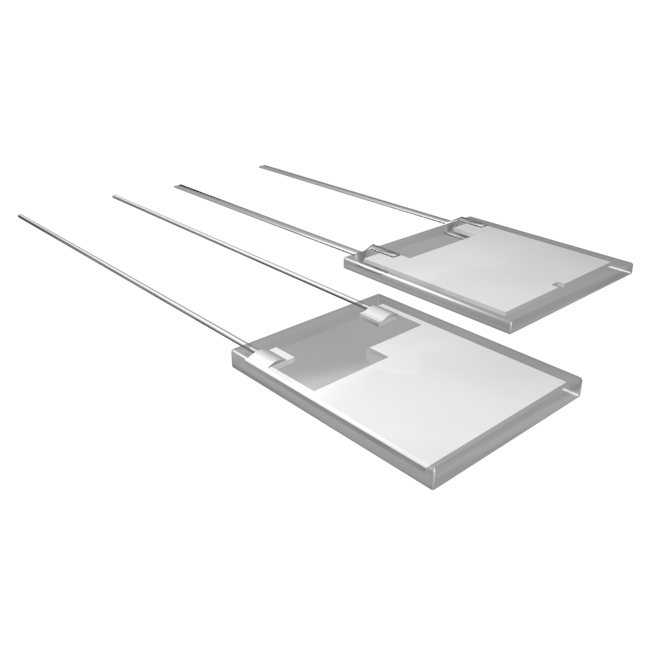

194. The SH relative humidity sensing element consists of an electrode system on a glass-ceramic substrate, covered with a humidity-sensitive polymer coating and a water-vapor-permeable metal film. This coating system represents a humidity-dependent capacitor. SH uses the capacitance measurement principle to measure relative humidity in air or other non-corrosive gases and gas mixtures, with good long-term stability and linearity, low hysteresis, and good dynamic response.
195. 2. Russia comeco Temperature and Humidity Sensor Thin-Film Humidity Sensing Element SH Features:
196. Thin-film humidity sensing element SH
197. Low cost198. Wide T/RH operating range
199. Operating temperature up to 200°C
200. Excellent sensitivity
201. Very good dynamic characteristics
202. Short response time
203. Long-term stability
204. 3. Russia comeco Temperature and Humidity Sensor Thin-Film Humidity Sensing Element SH Parameters:
| 205. Conversion | 1 | 2 | 3 |
| 206. Measurement Range |
0 - 100 %RH |
||
| 207. Operating Temperature |
208. -60 ~ 200°C; with protective cap (option): -40 ~ 120°C |
||
| 209. Temperature Dependence |
RH' = [RH + a*(T-25)]*(b0 +b1 *T+b2 *T2),
where: a = 0.04 for T ≥ 25°C, 0 for T < 25°C; b0 = 0.98; b1 = 6x10-4; b2 = 6x10-6
|
||
| 210. Maximum Voltage |
211. max. 3 VAC (DC voltage not allowed!) |
||
| 212. Capacitance |
115 ± 15 pF at 20°C |
135 ± 10 pF at 20°C |
1050 ± 50 pF at 20°C |
| 213. Sensitivity |
0.25 pF / %RH |
0.35 pF / %RH |
2.5 pF / %RH |
| 214. Non-linearity |
< 1.5% at 5 - 95 %RH |
< 1.5% at 5 - 95 %RH |
< 1.5% at 5 - 95 %RH |
| 215. Hysteresis |
< 1.5 %RH at 5 - 95 %RH |
< 1.5 %RH at 5 - 95 %RH |
< 1.5 %RH at 5 - 95 %RH |
| 216. Long-term Stability |
< 1 %RH per year |
217. < 1% RH/year |
218. < 1.5% RH/year |
| 219. Response Time |
< 10 s |
< 10 s |
< 10 s |
| 220. Dissipation Factor | < 0.03 at 10 kHz |
< 0.03 at 10 kHz |
< 0.03 at 10 kHz |
| 221. Operating Frequency |
30 - 300 kHz |
30 - 300 kHz |
30 - 300 kHz |
| 222. Applications |
223. Climate control, handheld instruments, humidifiers, dehumidifiers, 224. HVAC and industrial applications, high-temperature applications |
||
225. Selection
| 226. Code |
227. Feature or Option |
228. Code Value |
| * | 229. Conversion |
1, 2, 3 |
| #1 |
230. Protective Cap |
231. X - none, P - plastic protective cap |
