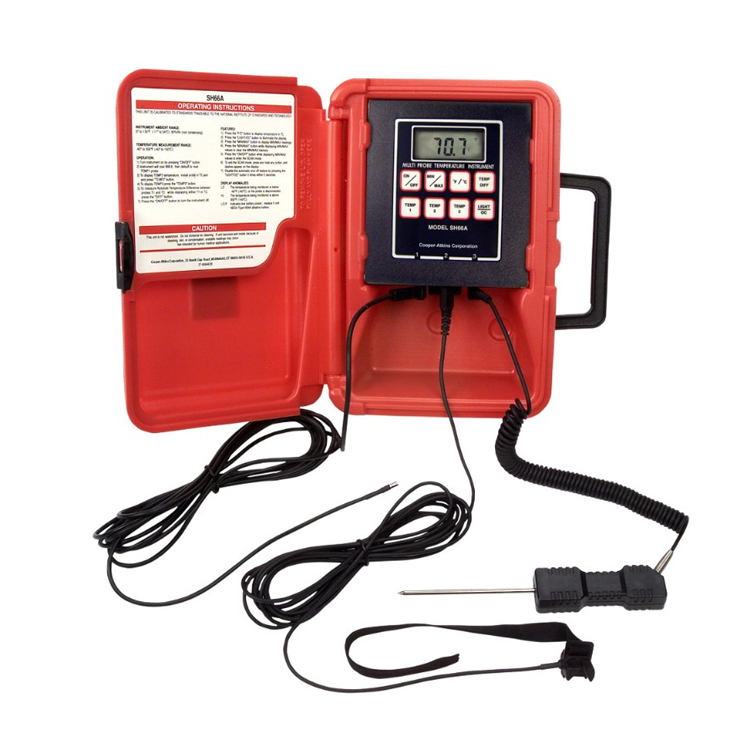

184. Cooper USA - SH66A-E
185. Temperature Range: -40° to 300°F (-40° to 150°C)
186. Temperature Accuracy: ±0.3°F (±0.2°C) or ±0.5% of reading, whichever is greater
187. Ambient Temperature Range: 0° to 130°F / -17° to 54°C (90% RH non-condensing)
188. Storage: Min/Max temperature
189. Shut-off: Auto power off after 10 minutes of inactivity
190. Certifications: WEEE, CE, NIST, RoHS
194. Product Introduction
195. SH66A-E Thermistor Temperature Kit Description:
196. This is a tool for applications requiring multiple temperature measurements.197. Measure suction line temperature, temperature through the condenser, and ambient temperature simultaneously! Continuous scanning function records temperatures from three probes and allows technicians to monitor remote critical temperatures while completing other tasks. Additionally, LCD backlight enables use in dark environments, and the sealed keypad protects the instrument from spills and dust.
198. SH66A-E Thermistor Temperature Kit Operating Guide:
199. *Turn on the meter by pressing the "ON/OFF" button. The meter displays 888.8, defaulting to reading TEMP 1 probe; to display TEMP 2 temperature, insert the probe into the T2 port and press "TEMP 2"; to display TEMP 3 temperature, insert the probe and press "TEMP 3"; to measure the absolute temperature difference between T1 and T2, press "TEMP DIFF" while displaying T1 or T2; press "ON/OFF" to turn off the instrument.
200. SH66A-E Thermistor Temperature Kit Features:
201. 1) Press "°F/°C" button to display temperature in °C
202. 2) Press "LIGHT/OC" button to illuminate the display
203. 3) Press "MIN/MAX" button to display Min/Max readings
204. 4) Press "MIN/MAX" button to display Min/Max readings until memory is cleared
205. 5) Press and hold "ON/OFF" button until "MIN/MAX" is displayed to enter scan mode
206. 6) To exit scan mode, press and hold "TEMP 1" button until dashed lines appear on the display
207. 7) Press "LIGHT/OC" button 3 times within 5 seconds to disable auto power off
208. SH66A-E Thermistor Temperature Kit Specifications:
| 209. Temperature Range |
210. -40° to 300°F (-40° to 150°C) |
| 211. Temperature Accuracy |
212. ±0.3°F (±0.2°C) or ±0.5% of reading, whichever is greater |
| 213. Ambient Temperature Range |
214. 0° to 130°F / -17° to 54°C (90% RH non-condensing) |
| 215. Storage |
Min/Max216. Temperature |
| 217. Shut-off |
218. Auto power off after 10 minutes of inactivity |
| 219. Resolution |
0.1° |
| 220. Probe 1 |
221. #2010 Air Probe |
| 222. Probe 2 |
223. #4011 Surface Probe |
| 224. Probe 3 |
225. #1075 General Purpose Puncture Probe |
| 226. Certifications |
WEEE、CE、NIST、RoHs |
| 227. Warranty |
228. 5 years for main unit, 1 year for probes |
| 229. LCD Screen Size |
230. 2" x 7/8", backlit |
| 231. Dimensions |
9.5" x 6.5" x 3 .5" (241 mm x 165 mm x 89 mm) |
| 232. Battery Type |
233. 9V alkaline battery |
| 234. Battery Life |
235. 90 hours |
| 236. Weight |
1lb 5oz / 595g |
237. 1075 General Purpose Puncture Probe
| 227. Warranty |
238. Probe warranty 1 year |
| 209. Temperature Range |
239. -40° to 300°F / -40° to 149°C |
| 211. Temperature Accuracy |
±0.2°C |
| 240. Housing Material |
241. ABS plastic |
| Max242. Temperature Alert |
300°F (149°C) |
| Max243. Cable Temperature |
200°F (93°C) |
| 244. Response Time |
245. 6 seconds (in liquid) |
| 246. Shaft Length |
3.75" (9.525cm) |
| 247. Shaft Diameter |
0.140" (0.356cm) |
| 248. Cable Length |
249. 182.9 cm (uncoiled) |
| 250. Cable Material |
251. Polyurethane |
| 236. Weight |
1.764oz (60.0g) |
| 231. Dimensions |
7.10 x 1.0 x .700" / 18.03 x 2.54 x .018 cm |
252. 2010 Air Probe
| 209. Temperature RangeMax253. Value |
200°F / 93°C |
| Max254. Cable/Wire Temperature Range |
200°F / 93°C |
| 255. Response |
256. 20 seconds |
| 257. Probe/Shaft Length |
258. 1.27 cm |
| 259. Cable/Wire |
260. 365.8 cm |
| 227. Warranty |
238. Probe warranty 1 year |
| 209. Temperature Range |
261. -40° to 200°F / -40° to 93°C |
| 211. Temperature Accuracy |
±0.4°F（±0.2°C） |
| 213. Ambient Temperature Range |
< 200°F（<93°C） |
| Max242. Temperature Alert |
200°F（93°C） |
| Max243. Cable Temperature |
200°F（93°C） |
| 244. Response Time |
262. 20 seconds (in liquid) |
| 246. Shaft Length |
0.5" / 1.27cm |
| 247. Shaft Diameter |
0.160" /0.406cm |
| 248. Cable Length |
263. 365.8 cm (straight) |
| 250. Cable Material |
251. Polyurethane |
| 236. Weight |
264. 56 g |
265. 4011 Pipe and Rope Probe
| 209. Temperature RangeMax253. Value |
100°C |
| 266. Max Cable/Wire Temperature Range |
93°C |
| 259. Cable/Wire |
260. 365.8 cm |
| 227. Warranty |
238. Probe warranty 1 year |
| 209. Temperature Range |
267. -32° to 100°C |
| 211. Temperature Accuracy |
±1°C |
| 213. Ambient Temperature Range |
<100°C |
| 268. Max Temperature Alert |
100°C |
| 269. Max Cable Temperature |
93°C |
