Product Introduction

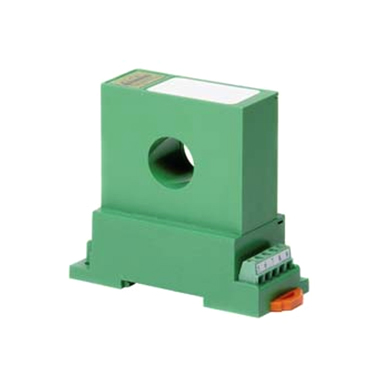

I.CR5411Hall Current Sensor Description:
The CR5410 series AC/DC Hall current sensors can provide a bipolar output that proportionally reflects the current input waveform. These devices are specifically used in applications such as multi-mode current detection.
II.CR5411Hall Current Sensor Features:
Non-contact current sensor
DIN rail or panel mounting
MTBF: 100K hours
III.CR5411Hall Current Sensor Parameters:
Output: ±10 V AC/DC
Power Supply: 24 V DC
Output Load: 2 KΩ or greater
Isolation Voltage: 2500 VDC
Operating Temperature: 0°C to +50°C
Thermal Drift: 500 ppm /°C
Basic Accuracy: 1%
Response Time: 0.2msmax.
Frequency Range: DC to AC/DC and 20 Hz to 4 kHz
IV.CR5411Hall Current Sensor Application Fields:
Electric welding machines, frequency converters, UPS power supplies, inverters, electric vehicles, electric locomotives, power stations, wind power generation, robots, ground fault detectors, and other industrial control automation fields.
