Product Introduction

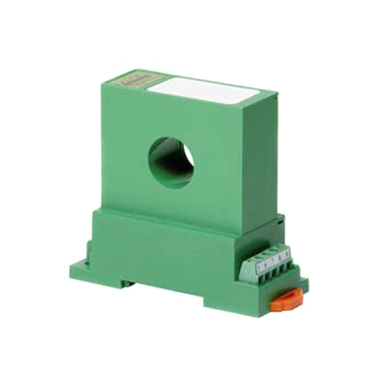

I.CR5410Hall Effect Current Sensor
The CR5410 series AC/DC Hall Effect current sensors can provide a bipolar output that proportionally reflects the current input waveform. These devices are specifically used in applications such as multi-mode current detection.
II.CR5410Hall Effect Current Sensor Features:
Non-contact current sensor
DIN rail or panel mounting
III.CR5410Hall Effect Current Sensor Specifications:
MTBF: 100K hours
Output: ±5 V AC/DC
Power Supply: 24 V DC
Output Load: 2 KΩ or greater
Isolation Voltage: 2500 VDC
Operating Temperature: 0°C to +50°C
Thermal Drift: 500 ppm /°C
Basic Accuracy: 1%
Response Time: 0.2ms max
Frequency Range: DC for AC/DC only, and 20Hz to 4kHz
Mounting: DIN rail mounting, panel mounting
IV.CR5410Hall Effect Current Sensor Applications
Electric welding machines, inverters, UPS power supplies, inverters, electric vehicles, electric locomotives, power stations, wind power generation, robots, ground fault detectors, and other industrial control automation fields
