Product Introduction

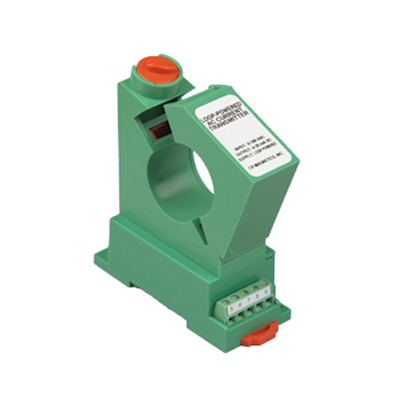

I.CR5411SHall Effect Current Sensor Description:
CR5410The series AC/DC Hall current sensors can provide a bipolar output that proportionally reflects the current input waveform. These devices are specifically used in applications such as multi-mode current detection.
II.CR5411SHall Effect Current SensorSpecifications:
Basic Accuracy: 1%
Calibration: True RMS measurement, average RMS, DC
Thermal Drift: 500 ppm /°C
Operating Temperature: 0°C to +60°C
Pollution Degree: 2
Insulation Voltage: 2500 VDC
Altitude: 2000 meters max.
Frequency Range: DC, DC to 4kHz, 20Hz - 5kHz
MTBF: Greater than 100 hours
Supply Voltage: 24 VDC ±10%
Output Load: 2kΩ or greater
Response Time: 0.25ms max.
III.CR5411SHall Effect Current SensorApplication Areas
Welding machines, frequency converters, UPS power supplies, inverters, electric vehicles, electric locomotives, power stations, wind power generation, robots, ground fault detectors, and other industrial control automation fields.
