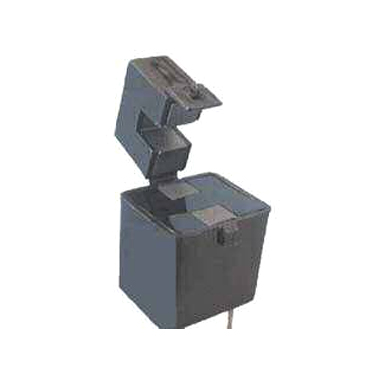

US CR Magnetics Detachable Current Sensor - CR3100 Series

1.CR3100 Series Detachable Current Sensor Product Description:
The detachable current sensor CR3100 series includes four models: CR3109-1500, CR3110-3000, CR3111-3000, and CR3113-2000. It is an economical way to monitor current. The unique rotating shaft and lock ensure that the measured current line is not affected when closed. The secondary coil can produce a maximum voltage of 10VAC through a load resistor.

2.CR3100 Series Detachable Current Sensor Features:
Small Size
Low Cost
Safety Lock
Max Continuous Current: 4 x Ir
Insulation Voltage: 3500VAC/1min
Storage Temperature: -45 ~ 85°C
Operating Temperature: -40 ~ 65°C

3.CR3100 Series Detachable Current Sensor Applications:
Portable Instruments
Sub-metering Energy Meters
Monitoring Electric Loads

4.CR3100 Series Detachable Current Sensor Product Models:
