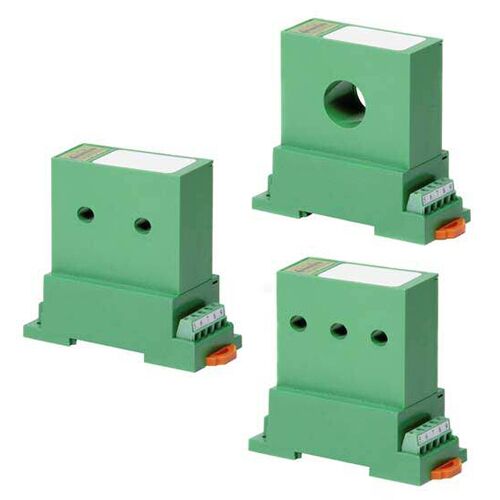

US CR MAGNETICS INC True RMS AC Current Sensor - CR4100 Series

I. True RMS AC Current Sensor CR4100 SeriesProduct Description:

The True RMS AC current sensor CR4100 series includes six models: CR4110, CR4111, CR4150, CR4160, CR4170, and CR4180. Designed specifically for applications with non-pure sine wave currents, it offers higher accuracy and precision than other current sensors.

II. True RMS AC Current Sensor CR4100 SeriesFeatures:

Measurement range: multiple options within 0.5-150 AAC

Basic accuracy up to 0.5%

35mm DIN rail or panel mounting

24VDC power supply

Multiple output signal options: 0-5VDC, 0-10VDC, 4-20mADC

Can be used with external current transformers

High-precision measurement

Circuit connection diagram printed on housing

Certified to UL 61010B-1, CAN/CSA-C22.2, IEC 61010-1, BS EN 61010-1

III. True RMS AC Current Sensor CR4100 SeriesApplications:

Rapidly changing motor loads

Choppers

Harmonic currents
