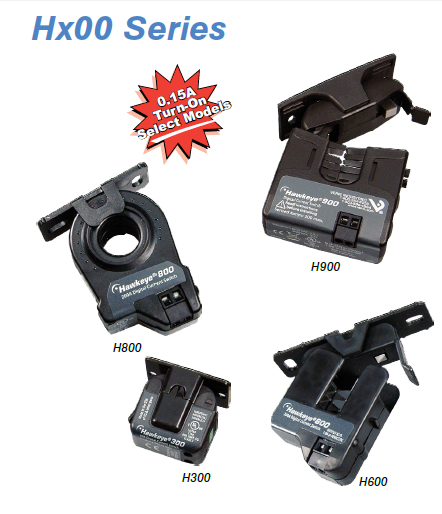

Current Monitoring Switch – Manual Trip – H300 - H300
Specifications:
Sensor Power: Powered from monitored current
Insulation Rating: 600VAC RMS (UL), 300VAC RMS (CE)
Frequency Range: 50/60 Hz
Temperature Range: -15° to 60°C (5° to 140°F)
Humidity Range: 10-90% RH, non-condensing
Maximum Terminal Wire Size: 14 AWG
Terminal Torque (typical): 4 in-lbs
Agency Approvals: UL 508 Open Device Listing, CE: EN61010-1:2001-02, CAT III, deg. 2, basic insulation
Product Introduction
Current Monitoring Switch – Manual Trip – H300 Applications:
Monitor the on/off status of electrical loads
Monitor direct-drive units, exhaust fans, and other fixed loads
Verify lighting runtime
Monitor the switching status of direct-drive fans, circulation pumps, and process motors
More reliable than auxiliary contact relays
Ideal for direct-drive units, unit ventilators, fan coil units, exhaust fans, and other fixed loads
Great for lighting status – cheaper than 277V relays
Pick-up current as low as 0.15A... ideal for small exhaust fans (not for detecting conveyor belt losses)
Removable mounting bracket for easy installation
Monitor fan status, circulation pumps, motors, and other electrical loads
Split-core design for easy retrofit installation
Compact micro housing... saves valuable panel space
100% solid-state, no mechanical moving parts to fail
Non-polarized output
5-year warranty
Current Monitoring Switch – Manual Trip – H300 Specifications:
Sensor Power: Powered from monitored current
Insulation Rating: 600VAC RMS (UL), 300VAC RMS (CE)
Frequency Range: 50/60 Hz
Temperature Range: -15° to 60°C (5° to 140°F)
Humidity Range: 10-90% RH, non-condensing
Maximum Terminal Wire Size: 14 AWG
Terminal Torque (typical): 4 in-lbs
Agency Approvals: UL 508 Open Device Listing, CE: EN61010-1:2001-02, CAT III, deg. 2, basic insulation
