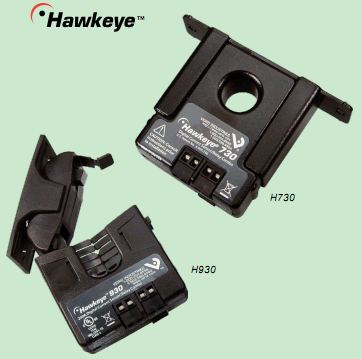

Current Monitoring Switch with Relay – Manual Trip – H730 - H730
Sensor Power: Induced from monitored conductor
Insulation Rating: 600VAC RMS
Frequency Range: 50/60 Hz
Temperature Range: -15° to 60°C (5° to 140°F)
Humidity Range: 10-90% RH, non-condensing
Terminal Wire Size: 14 AWG
Terminal Torque (typical): 4 in-lbs (0.45 N-m)
Agency Approvals: UL 508 Open Device Listing
Product Introduction
Applications of Current Monitoring Switch with Relay – Manual Trip – H730:
Monitor direct drive units, exhaust fans, and other fixed loads
Monitor open/close status of electrical loads
Start/stop motors
Sensor on/off status and command relay for direct drive fans, circulation pumps, and process motors
Reduce installation components... save time and space
On/off status and command relay in one labor-saving device
Cost-effective monitoring of start/stop, unit ventilators, fan coil units, exhaust fans, and other fixed loads without conveyor belt losses
Space-saving dual-function sensor for monitoring start/stop/status
No calibration required
Install only one device... reduce installation costs
Easier to install than differential pressure switches... no additional wiring required
100% solid state... no mechanical moving parts to fail
Removable mounting bracket for easy installation
5-year warranty
Specifications of Current Monitoring Switch with Relay – Manual Trip – H730:
Sensor Power: Induced from monitored conductor
Insulation Rating: 600VAC RMS
Frequency Range: 50/60 Hz
Temperature Range: -15° to 60°C (5° to 140°F)
Humidity Range: 10-90% RH, non-condensing
Terminal Wire Size: 14 AWG
Terminal Torque (typical): 4 in-lbs (0.45 N-m)
Agency Approvals: UL 508 Open Device Listing
