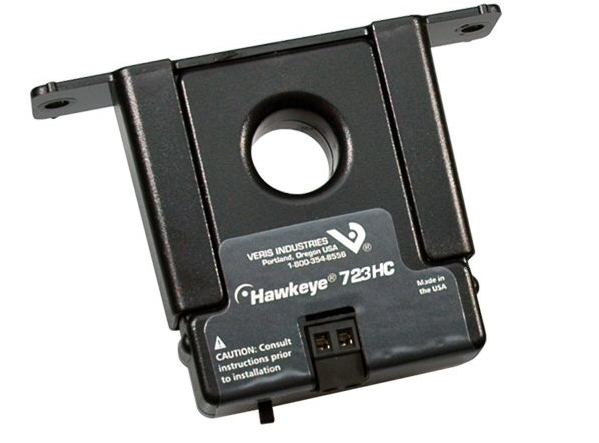

Current Sensor – 0~10V DC Output - H723HC
Sensor Power: Self-powered from monitored current
Insulation Rating: 300VAC RMS
Frequency Range: 50/60 Hz
Temperature Range: -15° to 60°C
Humidity Range: 10-90% RH, non-condensing
Accuracy: ±2%, 10~100% of full scale (selected range)
Response Time: 2 seconds
Terminal Wire Size: 14 AWG
Terminal Torque (typical): 4 in-lbs (0.45 N-m)
Agency Approvals: UL 508 Open Device Listing, CE: EN61010-1:2001-02, CAT III, deg. 2, basic insulation
Product Introduction
Current Sensor H723HC Applications:
Load trending
Motor control
Fan/circulation pump status
Current Sensor H723HCFeatures
Self-powered analog current sensor, 0-10VDC output
No jumper requirements... reduces installation errors
No additional power supply required for the sensor
Factory calibrated, easy installation
Factory-calibrated field-selectable ranges, high resolution, easy installation
One device for complete installation... reduces installation costs
Removable mounting bracket for easy installation
100% solid state, no mechanical moving parts
5-year warranty
Current Sensor H723HCSpecifications:
Sensor Power: Self-powered from monitored current
Insulation Rating: 300VAC RMS
Frequency Range: 50/60 Hz
Temperature Range: -15° to 60°C
Humidity Range: 10-90% RH, non-condensing
Accuracy: ±2%, 10~100% of full scale (selected range)
Response Time: 2 seconds
Terminal Wire Size: 14 AWG
Terminal Torque (typical): 4 in-lbs (0.45 N-m)
Agency Approvals: UL 508 Open Device Listing, CE: EN61010-1:2001-02, CAT III, deg. 2, basic insulation
