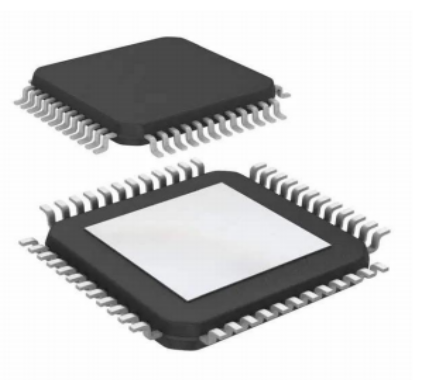

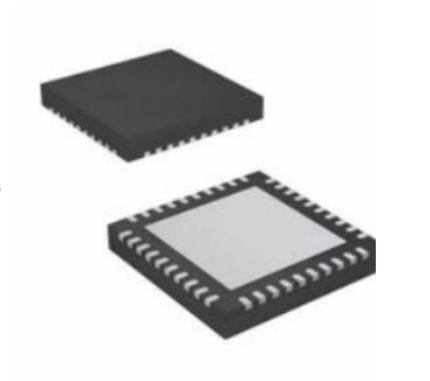

DVI/HDMI Chip - MS3815

MS3815is an adaptive equalizer chip that can provideDVI，HDMI，DFP，PanelLinkandADCcompensation for cable attenuation, extending thetransmission distance of cables.MS3815The goal ofTMDSis to equalizeMS3815format signals.It includes4channelsCMLofdifferential input/output (three of which are data channels and one is a clockchannel), and provides a clock signal loss indication function. For chip-to-chip direct1/2 communication, the output driver can be switched toDVIoutput specifications to reduce power consumptionand reduce electromagnetic interference.MS3815It can operate in adaptive mode, and for specificapplications, it can also operate in manual mode.MS3815It uses3.3Vsingle power supplypower supply, operating temperature is-20℃~105℃, data transfer rate250Mbps~1.65Gbps.



I.Features of DVI/HDMI Chip-MS3815:

Extend cable length for projectors or displays using DVI, DFP, PanelLink, ADC, or HDMI interfaces
Transmission cable lengths for DVI interfaces with different wire gauges are as follows:
- Shielded twisted pair with 24 AWG: 0-50 meters
- Shielded twisted pair with 28 AWG: 0-36 meters
- Shielded twisted pair with 30 AWG: 0-30 meters
Compatible with 480i, 480p, 720p, 1080i, 1080p resolution digital TV
Compatible with VGA, SVGA, XGA, SXGA, UXGA
No system control required, automatically equalizes 40dB cable attenuation at 1650Mbps
3.3V power supply
Power consumption 0.6W (typical)



I. Applications of DVI/HDMI Chip-MS3815：

ProjectorsDVI/HDMI Interface input
