Product Introduction
I. T80 pH SensorDescription
Measures pH, ORP, specific ions, dissolved oxygen, turbidity, conductivity, or resistivity, and is used with S80 model sensors.

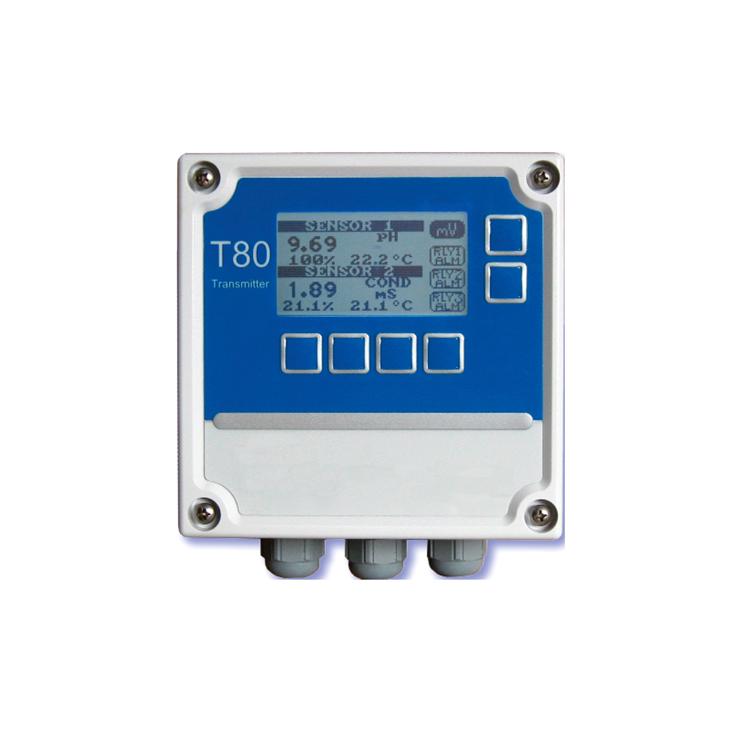

The T80 universal transmitter is a single or dual channel transmitter for continuous measurement of pH, ORP, ions, dissolved oxygen, turbidity, conductivity, or resistivity in general industrial environments. The T80 transmitter digitally communicates with any ECD model S80 smart sensor, automatically configuring the transmitter's menu and display screens to the measurement parameter. The same transmitter can be used for any measurement; for example, inserting an S80 conductivity sensor into a T80 pH sensor will automatically reconfigure it as a conductivity transmitter. No more inventorying multiple instrument types; one T80 transmitter will automatically configure to any of the listed measurements.
II. T80 pH Sensor
The S80 smart sensor communicates bidirectionally with the T80 transmitter. The sensor type, identity, and serial number are stored in the sensor's memory, along with calibration registers. S80 model sensors are factory calibrated so they can be used when connected to a T80 model. Model S80 sensors are waterproof, and internal components are epoxy encapsulated in a ¾” housing. Model S80 sensors use the same field-proven, easily replaceable electrodes as S10 and S17 sensors, saving time and money. The T80 transmitter can use a digital converter, allowing the use of non-digital sensors. The digital converter can only be used on line-powered instruments.
III. T80 pH SensorAdvantages
1. Single or dual channel, measures pH, ORP, DO, turbidity, conductivity, or resistivity.
2. Graphic LCD display: easy to read graphical and numerical information.
3. Simple menu structure: intuitive, easy to navigate and configure.
4. Uses ECD digital smart sensors, factory calibrated sensors and stored data.
5. 4-20 mA output with MODBUS RTU and alarm relays: flexible configuration for all applications.
6. HART communication
