Product Introduction
S80 Smart SensorDescription
Electrochemical devices provide a complete line of liquid analysis sensors: pH, ORP, specific ions, dissolved oxygen, conductivity, and resistivity. The technical advantage of the Model S80 smart sensor is design flexibility to configure the sensor that best suits your application.
ECD Model S80 Sensor Overview - Smart Sensor Selection for Your Application:

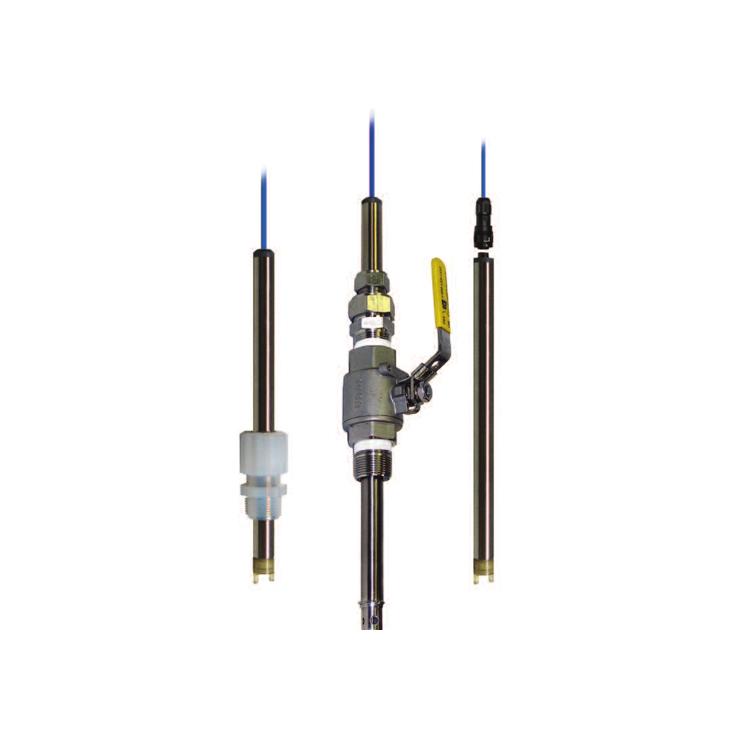

The S80 sensor has two universal sensor designs:Insertion/submersion or valve-retractable ends to prevent blowout. The standard Model S80 sensor features a rugged ¾” 316 stainless steel body, 10” cable, or optional waterproof detachable cable assembly.
S80 Sensor Insertion/Submersion:The S80 sensor uses a ¾” MNPT compression process connection fitting. This allows a variable insertion length to accommodate pipe tees, flow cells, or mounting through tank walls. If the fitting is reversed, the sensor can be installed inside a standpipe to submerge it into the tank.
S80 Sensor Valve-Retractable:The S80 sensor uses a 1” ball valve with 1” NPT process connections. Loosen the compression fitting to allow the sensor to slide freely through the ball valve for insertion into or retraction from the process. Once retracted, the ball valve can be closed, and the sensor removed for service or replacement without shutting down the line.
Pre-calibrated detachable sensor option: This detachable sensor features a rugged IP68-rated industrial connector. A simple quarter-turn locking cable gland is all that is needed. These pre-calibrated sensors can be easily installed in the field.
S80 Smart Sensor6 Key Advantages
1. Smart sensor design with digital communication* Calibration data stored in the sensor allows field installation of a pre-calibrated sensor. Detachable cable option simplifies installation of pre-calibrated sensors.
2. Configurable for individual measurement parameters: pH, ORP, specific ions, dissolved oxygen, conductivity, and resistivity.
3. Available with specific electrode cartridges, many unique pH electrode designs and materials of construction are field-proven and selected for long life and accuracy.
4. Long-life replaceable electrode cartridges reduce all operating costs.
5. Submersible and retractable sensors, various process fittings, adjustable insertion lengths - threaded fittings, sanitary fittings, flanges, and valve-retractable fittings.
6. Industrial housing materials compatible with process fluids: stainless steel, titanium, polypropylene, or PVDF (polyvinylidene fluoride). Standard 10” or 17” lengths with extended lengths available.
